链条箱壳体 for BMW 3 Series E36 318ti (2000)

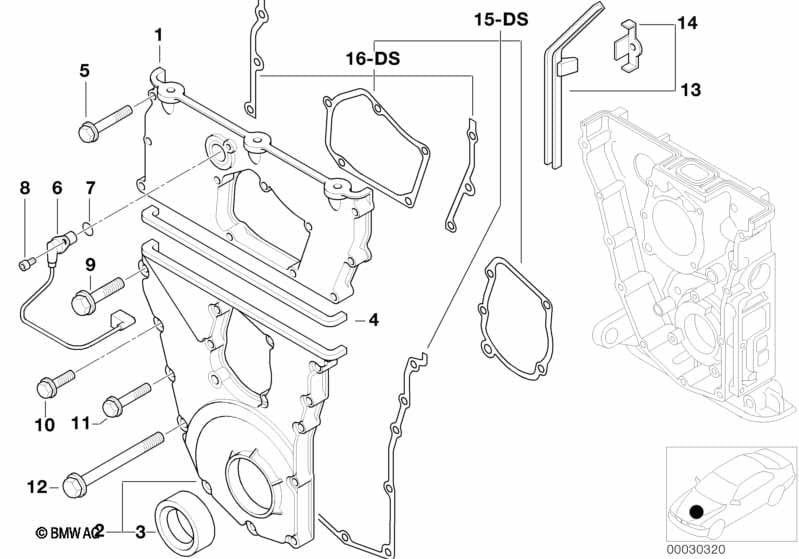

This 链条箱壳体 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 正时齿轮箱盖 上部 | 1 | 11141432232 | $96.98 | Shop at ECS Tuning | |||||
| 02 | 正时齿轮箱盖 下部 | 1 | 11141439646 | $158.65 | Shop at ECS Tuning | |||||
| 03 | 轴密封环 | 44X60X10 | 1 | 11141439570 | $24.92 | Shop at ECS Tuning | ||||
| 04 | 成型密封件 | 1 | 11141247837 | $6.96 | Shop at ECS Tuning | |||||
| 05 | 六角螺栓及平垫圈 | M6X35-U1-8.8 | X | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 06 | 信号发生器 | 1 | 12141743072 | $116.05 | Shop at ECS Tuning | |||||
| 07 | O 形环 | 17X3 | 1 | 12141748398 | $1.20 | Shop at ECS Tuning | ||||
| 08 | 圆头螺钉 | M6X16 | 1 | 11421740488 | $0.98 | Shop at ECS Tuning | ||||
| 09 | 六角螺栓及平垫圈 | M8X30-ZNNIV SI | 1 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 10 | 六角螺栓及平垫圈 | M6X20 | 4 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 11 | 六角螺栓及平垫圈 | M6X30-ZNNIV SI | 9 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 12 | 六角螺栓及平垫圈 | M8X80-U1-8.8 | 2 | 07119906270 | $3.37 | Shop at ECS Tuning | ||||
| 15 | 密封组件 正时齿轮箱 不含石棉 | 1 | 11141432099 | $25.43 | Shop at ECS Tuning | |||||
| 16 | 密封组件 正时齿轮箱 不含石棉 | 1 | 11141743065 | $18.98 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti 链条箱壳体?
- This technical diagram illustrates the 链条箱壳体 within the 发动机 group for the 3 Series E36 318ti produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the 正时齿轮箱盖 上部 (Part #11141432232).
- Which models use the hardware listed in this 链条箱壳体?
- The hardware and components featured in the 链条箱壳体 are specific to the 3 Series E36 318ti produced during 2000. These technical specifications ensure that parts like the 正时齿轮箱盖 上部 (11141432232) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 链条箱壳体 assembly?
- Each item in the 链条箱壳体 corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the 正时齿轮箱盖 上部 by locating its position on the schematic, which then links to the official BMW part number 11141432232 for the 发动机 section.
