发动机组/安装件 for BMW 1 Series F21 LCI 116d

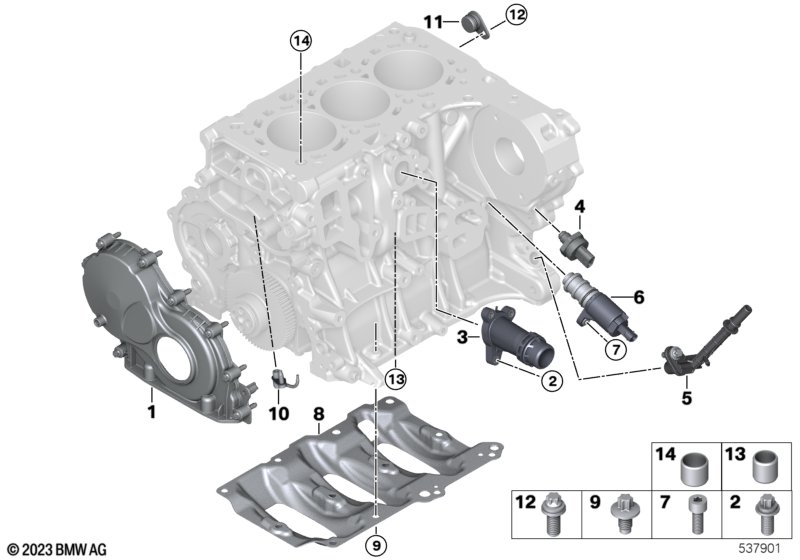

This 发动机组/安装件 technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 LCI 116d. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 正时齿轮箱盖 | 1 | 11148585285 | Shop at ECS Tuning | ||||||
| 01 | 正时齿轮箱盖 | 1 | 11148512597 | Shop at ECS Tuning | ||||||
| 02 | 六角螺栓 | BM6X25-U1-8.8 | 3 | 07119907490 | Shop at ECS Tuning | |||||
| 03 | 管接头 | 1 | 11118571141 | Shop at ECS Tuning | ||||||
| 04 | 油压传感器 | 1 | 12618576615 | Shop at ECS Tuning | ||||||
| 04 | 油压传感器 | M10 | 1 | 12618647488 | Shop at ECS Tuning | |||||
| 05 | 单向阀 | 1 | 11667620923 | Shop at ECS Tuning | ||||||
| 06 | 电磁阀 | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 07 | 圆头螺钉 | M6X18-10.9-ZNS3 | 1 | 07119906651 | Shop at ECS Tuning | |||||
| 08 | 机油刨 | 1 | 05/2018 | 11118512687 | Shop at ECS Tuning | |||||
| 仅连接 | ||||||||||
| -- | 螺栓 | M8X14 10.9 | 1 | 05/2018 | 11118572125 | Shop at ECS Tuning | ||||
| 08 | 机油刨 | 1 | 11118475733 | Shop at ECS Tuning | ||||||
| 仅连接 | ||||||||||
| -- | 螺栓 | M8X14 10.9 | 1 | 11118572125 | Shop at ECS Tuning | |||||
| 09 | 螺栓 | M8X14 10.9 | 8 | 11118572125 | Shop at ECS Tuning | |||||
| 10 | 喷油嘴 | 3 | 11428576334 | Shop at ECS Tuning | ||||||
| 11 | 盖板 | 1 | 17128604579 | Shop at ECS Tuning | ||||||
| 12 | 六角螺栓 | BM6X16-U1-8.8- | 1 | 07119908518 | Shop at ECS Tuning | |||||
| 13 | 空心定位销 | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | 空心定位销 | D=14,5MM | 4 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
