发电机部件 140A for BMW 3 Series E36 325i (1990)

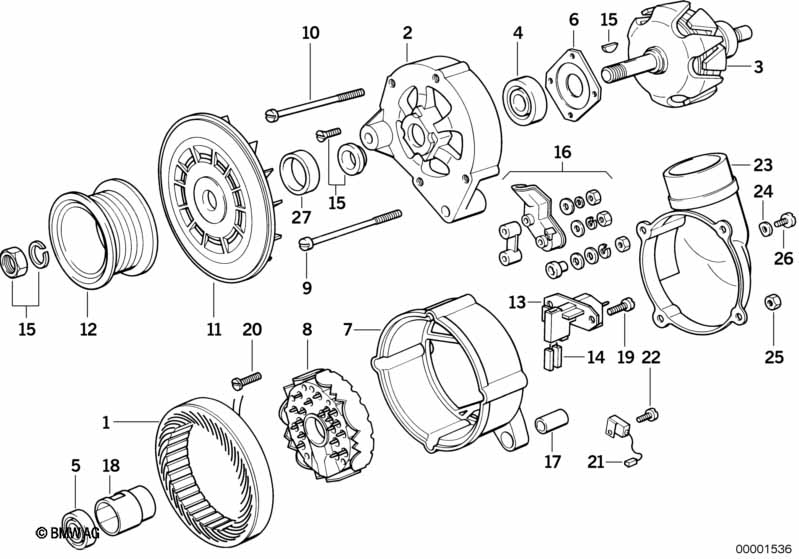

This 发电机部件 140A technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 仅适用于发电机 Bosch 型号号码 0 120 468 105 BMW 号码 12 31 1 738 091 / 092 |
|||||||||
| 01 | 环形线圈 | 1 | 12311738105 | $212.04 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 传动轴承 | 1 | 12311738106 | $69.19 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 转子 | 1 | 12311738107 | $198.65 | 已经终止, +core | Shop at ECS Tuning | ||||
| 04 | 向心球轴承 | 52X17X17 | 1 | 12311747246 | $51.53 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 向心球轴承 | 32X12X10 | 1 | 12311739203 | $21.20 | Shop at ECS Tuning | ||||
| 06 | 固定板 | 1 | 12311747247 | $3.35 | Shop at ECS Tuning | |||||
| 07 | 滑环支架 | 1 | 12311738108 | $57.07 | 已经终止 | Shop at ECS Tuning | ||||
| 08 | 二极管板 | 1 | 12311738109 | $260.03 | 已经终止, +core | Shop at ECS Tuning | ||||
| 09 | 半圆头埋头螺钉 | 3 | 12311738148 | $2.82 | Shop at ECS Tuning | |||||
| 10 | 半圆头埋头螺钉 | 1 | 12311738101 | $2.77 | Shop at ECS Tuning | |||||
| 11 | 风扇轮 | BOSCH/D=154MM | 1 | 12311730496 | $37.51 | Shop at ECS Tuning | ||||
| 12 | 皮带轮 | D=61,8MM | 1 | 12311738067 | $56.08 | 已经终止 | Shop at ECS Tuning | |||
| 13 | 调节器 | 1 | 12311726022 | $124.68 | Shop at ECS Tuning | |||||
| 14 | 碳刷组件 | 1 | 12311727756 | $18.07 | Shop at ECS Tuning | |||||
| 16 | 组件 安装件 | B+/D* | 1 | 12311747252 | $9.57 | Shop at ECS Tuning | ||||
| 17 | 轴套 | 1 | 12311738103 | $12.08 | 已经终止 | Shop at ECS Tuning | ||||
| 18 | 环 | 1 | 12311735305 | $2.73 | Shop at ECS Tuning | |||||
| 19 | 圆头螺钉 | 2 | 12311747251 | $0.58 | 已经终止 | Shop at ECS Tuning | ||||
| 20 | 螺钉 | 5 | 12311727753 | $2.62 | Shop at ECS Tuning | |||||
| 21 | 抗干扰电容器 发电机 | BOSCH | 1 | 12311356564 | $18.88 | +core | Shop at ECS Tuning | |||
| 22 | 圆头螺钉 | AM5X10 | 1 | 07119919412 | 已经终止 | Shop at ECS Tuning | ||||
| 23 | 吸入管接头 | BOSCH | 1 | 12311730687 | $17.74 | 已经终止 | Shop at ECS Tuning | |||
| 24 | 弹簧垫片 | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 25 | 六角螺母 | M8-8-ZNS3 | 3 | 10/1995 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 25 | 六角螺母 | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 26 | 半圆头埋头螺钉 | M5X12-ZN | 1 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 27 | 环 | 1 | 12311738190 | $5.35 | 已经终止 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i 发电机部件 140A?
- This technical diagram illustrates the 发电机部件 140A within the 发动机电气系统 group for the 3 Series E36 325i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the 环形线圈 (Part #12311738105).
- Which models use the hardware listed in this 发电机部件 140A?
- The hardware and components featured in the 发电机部件 140A are specific to the 3 Series E36 325i produced during 1990. These technical specifications ensure that parts like the 环形线圈 (12311738105) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 发电机部件 140A assembly?
- Each item in the 发电机部件 140A corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the 环形线圈 by locating its position on the schematic, which then links to the official BMW part number 12311738105 for the 发动机电气系统 section.
