喷射装置/喷射阀 for BMW 3 Series E36 318i (1996)

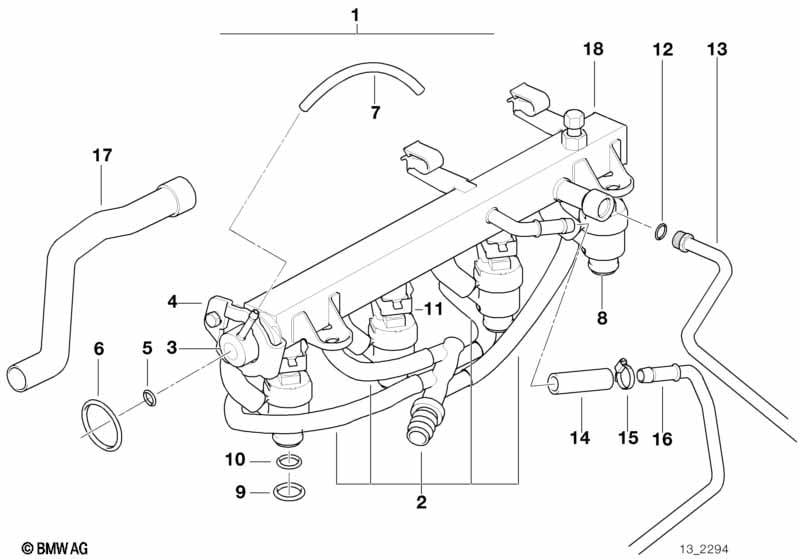

This 喷射装置/喷射阀 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 喷射单元 | HC1/2 | 1 | 01/1997 | 13531247911 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 分配件 | HC1/2 | 1 | 13531739618 | $32.88 | Shop at ECS Tuning | ||||
| 03 | 燃油压力调节器 | 3,0BAR/BOSCH | 1 | 01/1997 | 13531743378 | $116.12 | Shop at ECS Tuning | |||
| 04 | 防松环 | 1 | 01/1997 | 13531743395 | $7.37 | Shop at ECS Tuning | ||||
| 05 | O 形环 | 5X1,5 | 1 | 01/1997 | 13531720252 | $3.75 | Shop at ECS Tuning | |||
| 06 | O 形环 | 20X2,5 | 1 | 01/1997 | 13531720251 | $4.38 | Shop at ECS Tuning | |||
| 07 | 真空软管 Schwarz | 3,5X1,8 | X | 01/1997 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 08 | 喷射阀 带油气混和 | HC1/2 | 4 | 13641247196 | $122.42 | Shop at ECS Tuning | ||||
| 09 | O 形环 | 13,5X2,5 | 4 | 13641743377 | $3.75 | Shop at ECS Tuning | ||||
| 10 | O 形环 | 7,52X3,53 | 4 | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 11 | 防松夹 | 4 | 13531743394 | $2.12 | Shop at ECS Tuning | |||||
| 12 | O 形环 | 1 | 13531247953 | $1.25 | Shop at ECS Tuning | |||||
| 13 | 燃油供油管 | 1 | 01/1997 | 13531247984 | $22.15 | Shop at ECS Tuning | ||||
| 14 | 组件 燃油软管 / 夹箍 | 450MM/FPM | 2 | 01/1997 | 13311743557 | $30.27 | Shop at ECS Tuning | |||
| 15 | 软管夹圈 | L12-15 | 2 | 01/1997 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 16 | 燃油回流管 | 1 | 01/1997 | 13531739995 | $34.20 | Shop at ECS Tuning | ||||
| 17 | 空气软管 | NBR | 1 | 01/1997 | 13411247782 | $3.95 | Shop at ECS Tuning | |||
| 用于车辆及 自动稳定控制系统 (ASC+T) |
S214A=是 |
|||||||||
| 17 | 空气软管 | TLEV | 1 | 13411433923 | $6.03 | +core | Shop at ECS Tuning | |||
| 用于车辆及 自动稳定控制系统 (ASC+T) |
S214A=否 |
|||||||||
| 17 | 空气软管 | NBR | 1 | 13411247782 | $3.95 | Shop at ECS Tuning | ||||
| 18 | 喷射管 | HC1/2 | 1 | 01/1997 | 13531743393 | $329.40 | Shop at ECS Tuning | |||
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
