进气消音器 / 滤芯 / 热膜式空气质量计 for BMW 3 Series G20 大型豪华轿车 LCI M340i (2024)

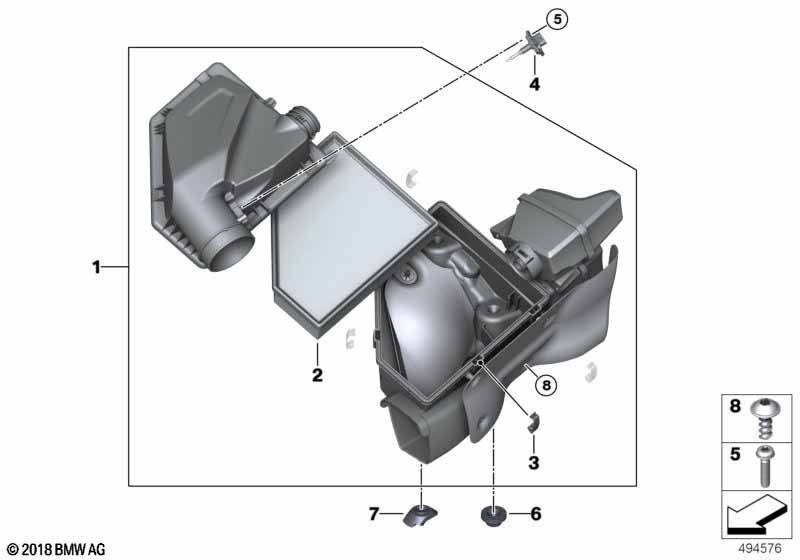

This 进气消音器 / 滤芯 / 热膜式空气质量计 technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 大型豪华轿车 LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 进气消音器 | 1 | 13718635100 | Shop at ECS Tuning | ||||||
| 02 | 空气滤清器滤芯 | 1 | 13718635102 | Shop at ECS Tuning | ||||||
| 03 | 弹簧夹 | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | 进气温度传感器 | 1 | 13628485041 | Shop at ECS Tuning | ||||||
| 05 | 螺钉 | 4X16 | 2 | 07129907551 | Shop at ECS Tuning | |||||
| 06 | 缓冲器 | 2 | 13717625238 | Shop at ECS Tuning | ||||||
| 07 | 支架 进气消音器 | 1 | 13718635105 | Shop at ECS Tuning | ||||||
| 08 | 塑料件螺栓 | TS5X12-ZNS3 | 6 | 07147194471 | $0.34 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 大型豪华轿车 LCI M340i 进气消音器 / 滤芯 / 热膜式空气质量计?
- This technical diagram illustrates the 进气消音器 / 滤芯 / 热膜式空气质量计 within the 混合气制备和调节装置 group for the 3 Series G20 大型豪华轿车 LCI M340i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the 进气消音器 (Part #13718635100).
- Which models use the hardware listed in this 进气消音器 / 滤芯 / 热膜式空气质量计?
- The hardware and components featured in the 进气消音器 / 滤芯 / 热膜式空气质量计 are specific to the 3 Series G20 大型豪华轿车 LCI M340i produced during 2024. These technical specifications ensure that parts like the 进气消音器 (13718635100) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 进气消音器 / 滤芯 / 热膜式空气质量计 assembly?
- Each item in the 进气消音器 / 滤芯 / 热膜式空气质量计 corresponds to the numbered list below the illustration. For the 3 Series G20 大型豪华轿车 LCI M340i, you can identify the 进气消音器 by locating its position on the schematic, which then links to the official BMW part number 13718635100 for the 混合气制备和调节装置 section.
