燃油管路 for BMW 3 Series E36 325i (1991)

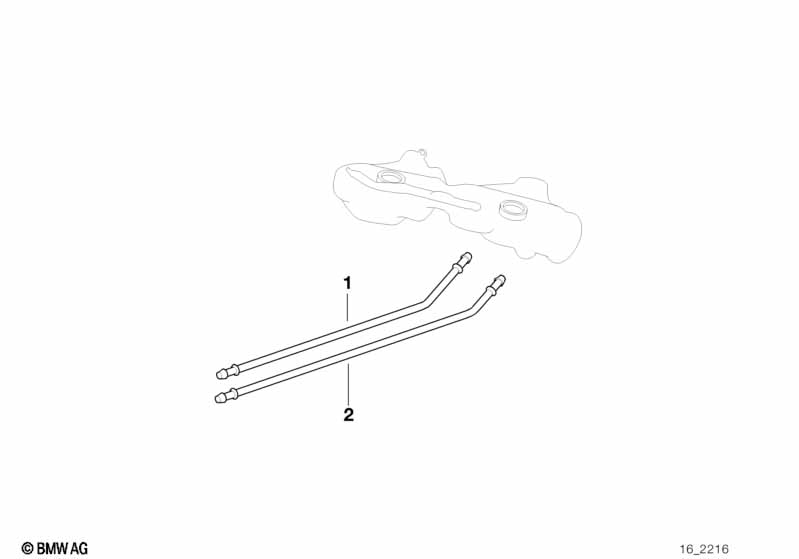

This 燃油管路 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 燃油供油管 | 1 | 12/1994 | 16121181131 | $24.97 | Shop at ECS Tuning | ||||
| 02 | 燃油回流管 | 1 | 12/1994 | 16121181132 | $14.28 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i 燃油管路?
- This technical diagram illustrates the 燃油管路 within the 燃油供应 group for the 3 Series E36 325i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the 燃油供油管 (Part #16121181131).
- Which models use the hardware listed in this 燃油管路?
- The hardware and components featured in the 燃油管路 are specific to the 3 Series E36 325i produced during 1991. These technical specifications ensure that parts like the 燃油供油管 (16121181131) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 燃油管路 assembly?
- Each item in the 燃油管路 corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the 燃油供油管 by locating its position on the schematic, which then links to the official BMW part number 16121181131 for the 燃油供应 section.
