冷却系统冷却液软管 for BMW 5 Series E60 525i

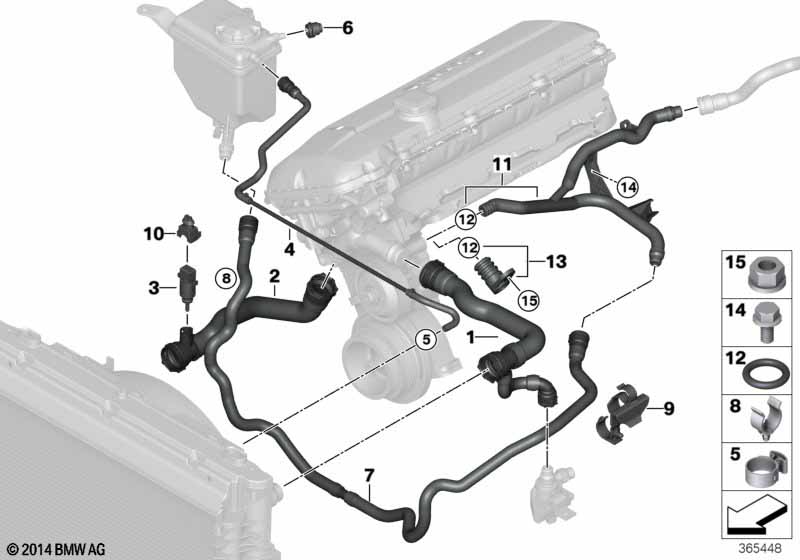

This 冷却系统冷却液软管 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用于车辆及 自动变速箱 |
S205A=否 |
||||||||
| 01 | 进油软管 | 1 | 17127519256 | $76.35 | +core | Shop at ECS Tuning | ||||
| 02 | 回流软管 | 1 | 17127519257 | $43.58 | +core | Shop at ECS Tuning | ||||
| 03 | 温度传感器 冷却液 | 1 | 13621433077 | $25.03 | Shop at ECS Tuning | |||||
| 04 | 排气管路 | 1 | 17127519247 | $35.87 | Shop at ECS Tuning | |||||
| 05 | 软管夹圈 | L12-14,5 | 1 | 32411712735 | $0.62 | Shop at ECS Tuning | ||||
| 06 | 密封塞 | D=8 | 1 | 11531436850 | $5.25 | Shop at ECS Tuning | ||||
| 07 | 回流软管 | 1 | 17127519259 | $65.37 | +core | Shop at ECS Tuning | ||||
| 08 | 支架 诊断插头 | 5 | 08/2003 | 11531726298 | $1.19 | Shop at ECS Tuning | ||||
| 08 | 软管保持架 | 5 | 17127533721 | $1.18 | Shop at ECS Tuning | |||||
| 09 | 冷却液软管支架 | 1 | 17127549717 | $5.77 | Shop at ECS Tuning | |||||
| 10 | 套筒壳体 | 2 POL. | 1 | 12521427615 | $1.73 | Shop at ECS Tuning | ||||
| 仅连接 | ||||||||||
| -- | 插头触头 SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| 11 | 水管 | 1 | 11537519710 | $71.68 | Shop at ECS Tuning | |||||
| 12 | O 形环 | 20X3 | 4 | 11531435808 | $1.81 | Shop at ECS Tuning | ||||
| 13 | 密封塞 | 1 | 11537519733 | $7.18 | Shop at ECS Tuning | |||||
| 14 | 六角螺栓及平垫圈 | M8X20-U1-8.8 | 3 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 15 | 六角螺母及平垫圈 | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
备注
- +core = plus core charge (possibility of a return of the old part)
- SI = Service-Information (服务信息)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i 冷却系统冷却液软管?
- This technical diagram illustrates the 冷却系统冷却液软管 within the 冷却装置 group for the 5 Series E60 525i. It provides a detailed exploded view of the components, identifying key parts such as the 进油软管 (Part #17127519256).
- Which models use the hardware listed in this 冷却系统冷却液软管?
- The hardware and components featured in the 冷却系统冷却液软管 are specific to the 5 Series E60 525i. These technical specifications ensure that parts like the 进油软管 (17127519256) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 冷却系统冷却液软管 assembly?
- Each item in the 冷却系统冷却液软管 corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the 进油软管 by locating its position on the schematic, which then links to the official BMW part number 17127519256 for the 冷却装置 section.
