集风罩 for BMW 3 Series E36 323i (1998)

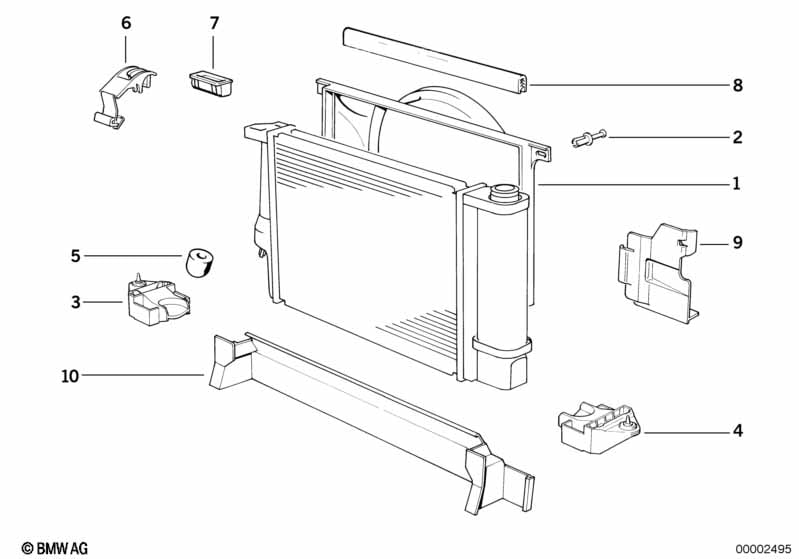

This 集风罩 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 集风罩 | A=440MM | 1 | 17111723030 | $26.13 | Shop at ECS Tuning | ||||
| 用于车辆及 空调器 或者 自动空调 |
S530A=是 S534A=是 |
|||||||||
| 01 | 集风罩 | A=440MM | 1 | 17111723029 | $26.13 | Shop at ECS Tuning | ||||
| 用于车辆及 国家规格 日本 或者 国家规格 澳大利亚 或者 热带国家型号 |
L807A=是 L810A=是 S823A=是 |
|||||||||
| 01 | 集风罩 | A=550MM | 1 | 17111723031 | $30.63 | Shop at ECS Tuning | ||||
| 02 | 膨胀铆钉 | 2 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 03 | 支架 下部 | 1 | 17111723338 | $4.48 | Shop at ECS Tuning | |||||
| 04 | 支架 下部 | 1 | 17111723338 | $4.48 | Shop at ECS Tuning | |||||
| 05 | 橡胶缓冲器 | 2 | 17111178412 | $1.68 | Shop at ECS Tuning | |||||
| 06 | 支架 上部 | 2 | 17111723341 | $3.07 | Shop at ECS Tuning | |||||
| 07 | 橡胶支座 | 2 | 17201719414 | $1.18 | Shop at ECS Tuning | |||||
| 08 | 成型密封件 | L=647MM | 1 | 17101712609 | $6.47 | Shop at ECS Tuning | ||||
| 用于车辆及 空调器 或者 自动空调 |
S530A=是 S534A=是 |
|||||||||
| 09 | 盖板 左 | 1 | 17111723348 | $9.83 | Shop at ECS Tuning | |||||
| 用于车辆及 国家规格 日本 或者 国家规格 澳大利亚 或者 热带国家型号 |
L807A=是 L810A=是 S823A=是 |
|||||||||
| 09 | 盖板 左 | 1 | 17111723348 | $9.83 | Shop at ECS Tuning | |||||
| 用于车辆及 空调器 或者 自动空调 仅适用于 空气动力套件 |
S530A=是 S534A=是 |
|||||||||
| 10 | 盖板 下部 | L=708MM | 1 | 17112227690 | $24.65 | Shop at ECS Tuning | ||||
| 用于车辆及 国家规格 日本 或者 国家规格 澳大利亚 或者 热带国家型号 仅适用于 空气动力套件 |
L807A=是 L810A=是 S823A=是 |
|||||||||
| 10 | 盖板 下部 | L=708MM | 1 | 17112227690 | $24.65 | Shop at ECS Tuning | ||||
