废气触媒转换器 / 前消音器 for BMW 3 Series E36 325i (1992)

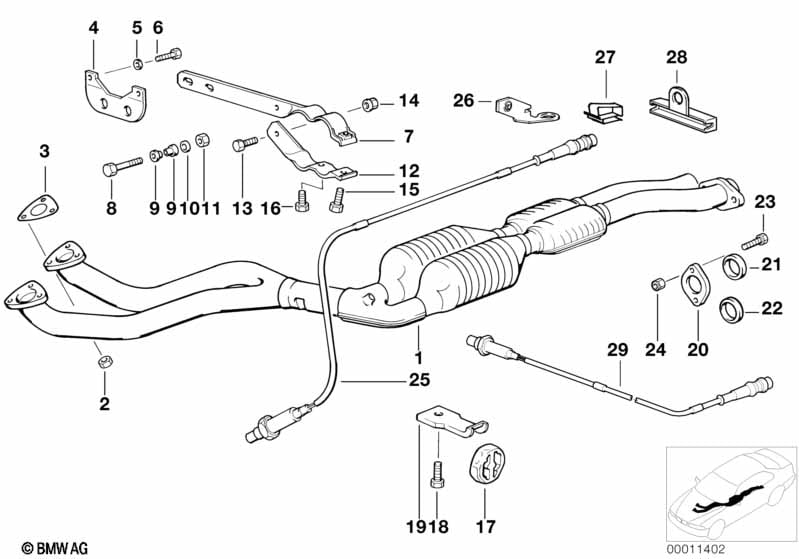

This 废气触媒转换器 / 前消音器 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP 排气管 废气触媒转换器 | 1 | 18301247143 | $1807.65 | Shop at ECS Tuning | |||||
| 02 | 六角螺母 | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 03 | 密封件 不含石棉 | 2 | 18301716888 | $11.75 | Shop at ECS Tuning | |||||
| 维修需要 | ||||||||||
| -- | 六角螺母 | M10 | 6 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 04 | 定位板 | GETRAG | 1 | 18311728547 | $5.59 | SI 230192468 | Shop at ECS Tuning | |||
| 05 | 弹簧垫片 | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | 六角螺栓 | M8X20-ZNNIV SI | 2 | 07119903039 | Shop at ECS Tuning | |||||
| 07 | 排气装置支架 | ZF | 1 | 18311728235 | $13.25 | Shop at ECS Tuning | ||||
| 08 | 圆头螺钉 | M8X35-10.9-ZNS3 | 2 | 07119906650 | $0.87 | Shop at ECS Tuning | ||||
| 09 | 卡套 | D=8MM | 4 | 18207546579 | $2.86 | Shop at ECS Tuning | ||||
| 10 | 平垫圈 | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 11 | 六角螺母 自锁式 | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 12 | 夹箍 | 1 | 09/1994 | 18311728237 | $7.47 | Shop at ECS Tuning | ||||
| 13 | 六角螺栓 | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 14 | 六角螺母 自锁式 | M8-8-ZNS3 | 1 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 15 | 六角螺栓 | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 16 | 六角螺栓 | M8X45-8.8-ZNS3 | 1 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 17 | 橡胶环 | 2 | 18301703634 | $4.50 | Shop at ECS Tuning | |||||
| 18 | 六角螺栓 | M8X12 | 2 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 19 | 定位板 | 2 | 18211723649 | $3.95 | Shop at ECS Tuning | |||||
| 20 | 法兰 | 1 | 18111719444 | $10.39 | Shop at ECS Tuning | |||||
| 21 | 密封环 不含石棉 | 1 | 18111723721 | Shop at ECS Tuning | ||||||

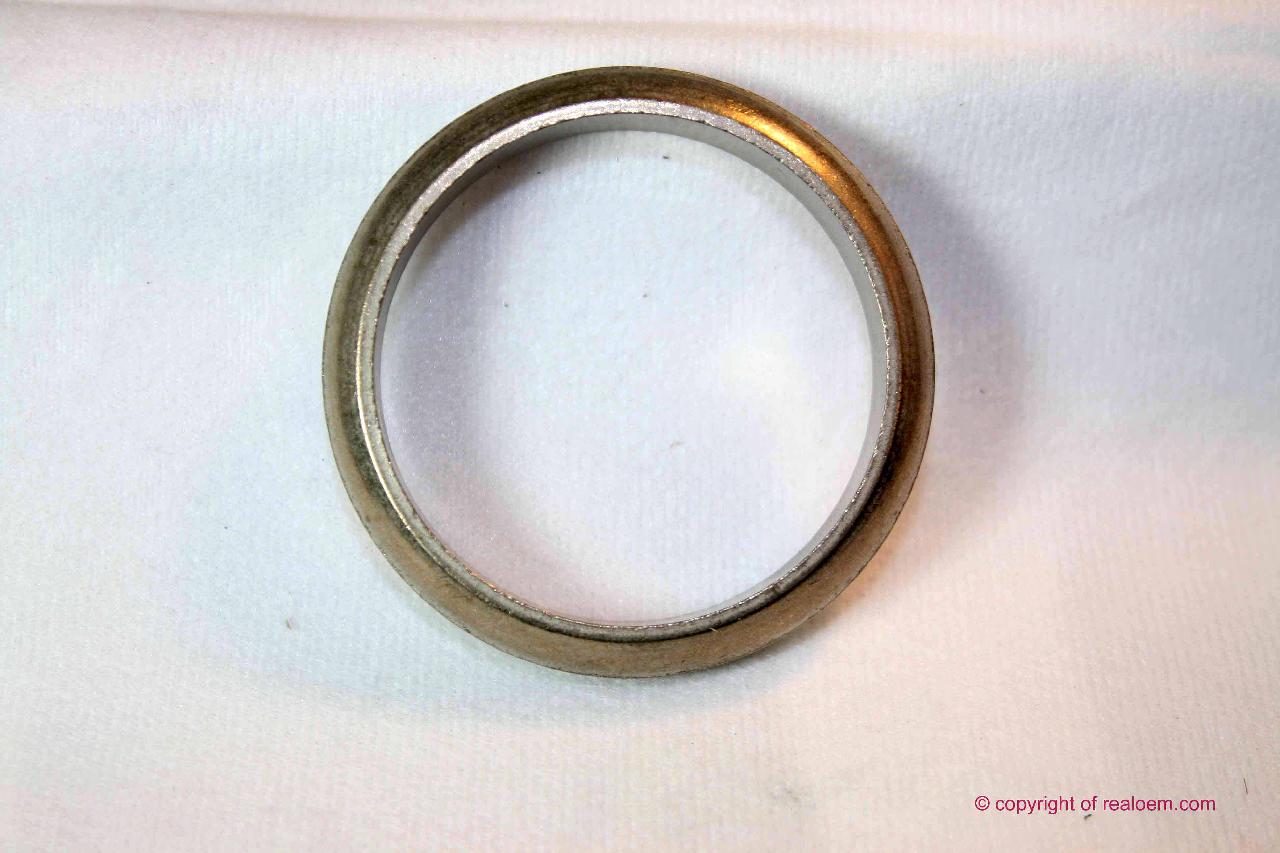

| 22 | 密封环 | 48MM | 1 | 18111719446 | $8.37 | Shop at ECS Tuning | ||||
| 23 | 六角螺栓 | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 24 | 六角螺母 带法兰 | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 25 | 氧传感器 | BOSCH/L=420MM | 1 | 11781735499 | $215.65 | Shop at ECS Tuning | ||||
| 26 | 支架 氧传感器 | 1 | 12521735478 | $3.52 | Shop at ECS Tuning | |||||
备注
- SI = Service-Information (服务信息)
