排气装置 后部 for BMW 7 Series F02 740Li

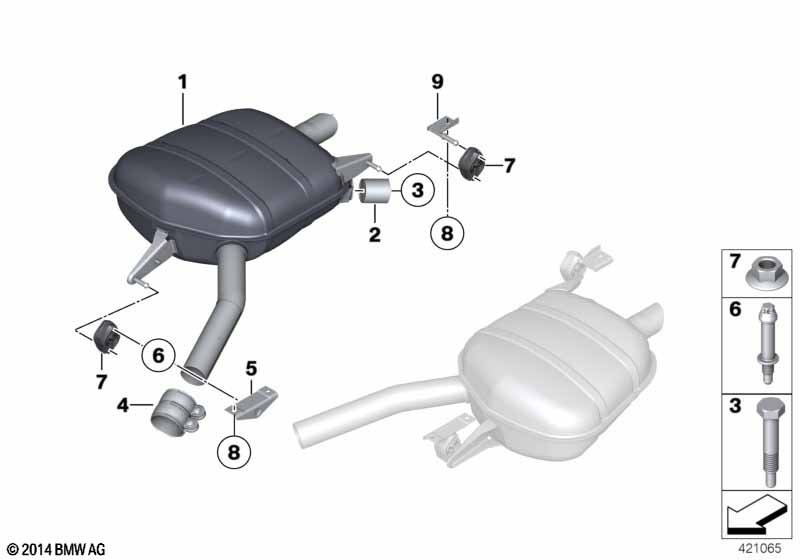

This 排气装置 后部 technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 后消音器 左侧 | 1 | 18307646926 | Shop at ECS Tuning | ||||||
| 01 | 后消音器 右侧 | 1 | 18307646972 | Shop at ECS Tuning | ||||||
| 02 | 缓冲减震块 | 37 HZ | 1 | 18307593199 | Shop at ECS Tuning | |||||
| 03 | 带肩螺钉 | M8X70 | 1 | 18407540023 | $4.07 | Shop at ECS Tuning | ||||
| 04 | 开口销 | D=60 X 70MM | 2 | 18307560779 | $34.61 | Shop at ECS Tuning | ||||
| 05 | 定位板 左 | 1 | 06/2009 | 10/2010 | 18207590551 | Shop at ECS Tuning | ||||
| 05 | 定位板 右 | 1 | 06/2009 | 10/2010 | 18207590552 | Shop at ECS Tuning | ||||
| 06 | 星形螺栓，带凸肩 | M8X55 | 2 | 10/2010 | 18307591467 | Shop at ECS Tuning | ||||
| 07 | 橡胶环 | 4 | 05/2009 | 18207585358 | Shop at ECS Tuning | |||||
| 08 | 带肩螺母 | M8-8-SC-ZNNIV | 6 | 10/2010 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 08 | 带肩螺母 | M8-8-SC-ZNNIV | 4 | 10/2010 | 07119906089 | $0.32 | Shop at ECS Tuning | |||
| 09 | 支架 后消音器 左后 | 1 | 18207578229 | $18.80 | Shop at ECS Tuning | |||||
| 09 | 支架 后消音器 右后 | 1 | 18207578230 | $18.80 | Shop at ECS Tuning |
