离合器从动盘 for BMW R45-R65LS..78-85 R45

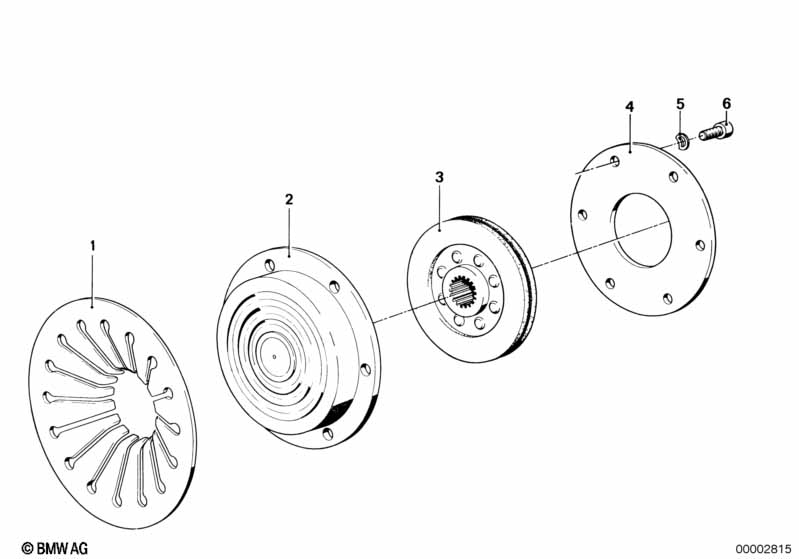

This 离合器从动盘 technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 碟形弹簧 | 1 | 09/1980 | 21211237573 | $96.43 | +core | Shop at ECS Tuning | |||
| 02 | 压盘 | 1 | 09/1980 | 21211237567 | $79.74 | +core | Shop at ECS Tuning | |||
| 03 | 离合器从动盘 | 1 | 09/1980 | 21211237571 | $146.12 | +core | Shop at ECS Tuning | |||
| 04 | 锁环 | 1 | 09/1980 | 21211237593 | $200.18 | +core | Shop at ECS Tuning | |||
| 05 | 弹簧垫片 黑色 | B6-ZN | 6 | 09/1980 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 05 | 平垫圈 | 5.3-140 HV-ZNS | 6 | 09/1980 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 05 | 弹簧垫片 | B6-ZNS3 | 6 | 09/1980 | 07119904496 | $1.78 | 已经终止 | Shop at ECS Tuning | ||
| 06 | 六角螺栓 | M6X25 | 6 | 09/1980 | 07119913589 | $0.62 | Shop at ECS Tuning |
备注
- +core = plus core charge (possibility of a return of the old part)
- 已经终止 = 这个零件已经不再生产.
