变速装置 固定装置件/安装件 for BMW 1 Series E87 120i

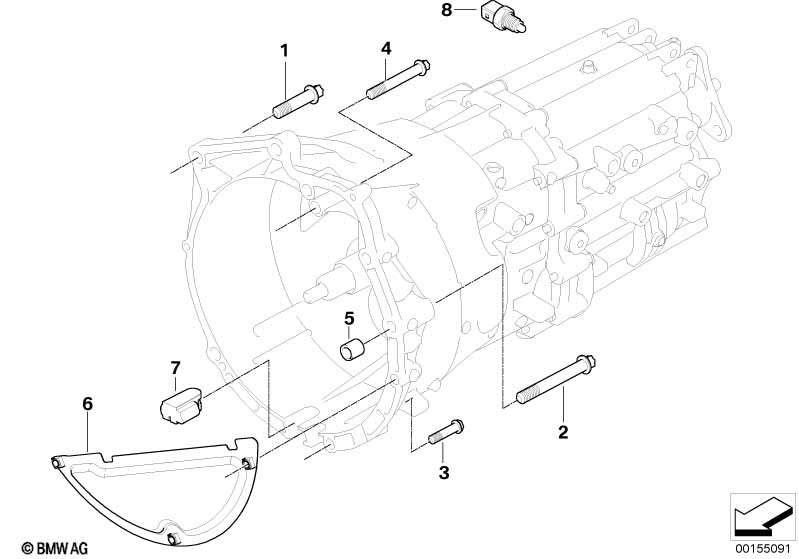

This 变速装置 固定装置件/安装件 technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120i. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 星形螺栓 | M12X50-8.8-ZNS3 | 2 | 09/2005 | 23001222891 | $1.32 | Shop at ECS Tuning | |||
| 02 | 星形螺栓 | M12X90 | 4 | 09/2005 | 23001222894 | $1.68 | Shop at ECS Tuning | |||
| 03 | 六角螺栓 | M6X40 | 3 | 09/2005 | 23007519717 | Shop at ECS Tuning | ||||
| 04 | 螺栓 | M10X85-8.8-ZNS3 | 1 | 09/2005 | 07129903800 | $1.78 | Shop at ECS Tuning | |||
| 05 | 空心定位销 | D=14,5MM | 2 | 09/2005 | 11117524470 | $1.65 | Shop at ECS Tuning | |||
| 06 | 盖板 已涂胶 | 1 | 09/2005 | 23007549314 | Shop at ECS Tuning | |||||
| 06 | 盖板 | 1 | 09/2005 | 24007527724 | Shop at ECS Tuning | |||||
| 07 | 密封塞 | 1 | 09/2005 | 23007549331 | 已经终止 | Shop at ECS Tuning | ||||
| 08 | 倒车灯开关 | M12X1.5 | 1 | 09/2005 | 23147524811 | $11.00 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 120i 变速装置 固定装置件/安装件?
- This technical diagram illustrates the 变速装置 固定装置件/安装件 within the 手动变速箱 group for the 1 Series E87 120i. It provides a detailed exploded view of the components, identifying key parts such as the 星形螺栓 (Part #23001222891).
- Which models use the hardware listed in this 变速装置 固定装置件/安装件?
- The hardware and components featured in the 变速装置 固定装置件/安装件 are specific to the 1 Series E87 120i. These technical specifications ensure that parts like the 星形螺栓 (23001222891) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 变速装置 固定装置件/安装件 assembly?
- Each item in the 变速装置 固定装置件/安装件 corresponds to the numbered list below the illustration. For the 1 Series E87 120i, you can identify the 星形螺栓 by locating its position on the schematic, which then links to the official BMW part number 23001222891 for the 手动变速箱 section.
