ZF 4HP22/24 壳体部件/供油 for BMW 5 Series E28 525e (1987)

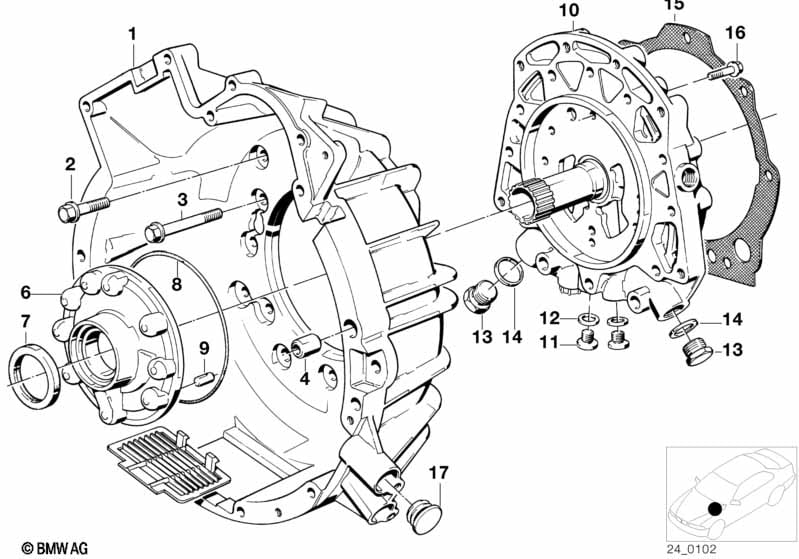

This ZF 4HP22/24 壳体部件/供油 technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 变矩器壳 | 1 | 24411215732 | $591.48 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 六角螺栓 | M10X30-Z3 | 6 | 24401215401 | $5.20 | 已经终止 | Shop at ECS Tuning | |||
| 03 | 六角螺栓 | M10X70-Z3 | X | 24401215402 | $4.42 | 已经终止 | Shop at ECS Tuning | |||
| 04 | 空心定位销 | D=14,5/11,0MM | 2 | 24411200459 | $13.83 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 防护格栅 辅助风扇 | 1 | 24111215126 | $1.87 | Shop at ECS Tuning | |||||
| 06 | 机油泵 | 1 | 24311218512 | $209.51 | 已经终止 | Shop at ECS Tuning | ||||
| 07 | 轴密封环 | 40X52X7 | 1 | 24311422671 | $11.45 | Shop at ECS Tuning | ||||
| 08 | O 形环 | 128X3 | 1 | 24201217321 | $9.32 | Shop at ECS Tuning | ||||
| 08 | O 形环 | 124,5X3 | 1 | 24311217133 | $7.24 | Shop at ECS Tuning | ||||
| 09 | 轴套 | 8X18 | 1 | 24311218652 | $1.13 | Shop at ECS Tuning | ||||
| 10 | 夹板 | 1 | 24161219065 | $379.71 | 已经终止 | Shop at ECS Tuning | ||||
| 11 | 螺塞 | M14X1,5 | 2 | 24401215399 | $4.42 | 已经终止 | Shop at ECS Tuning | |||
| 12 | 密封环 | A14X18 | 2 | 24401421740 | $0.57 | Shop at ECS Tuning | ||||
| 13 | 螺塞 | M20X1,5 | 2 | 24401215398 | $6.12 | 已经终止 | Shop at ECS Tuning | |||
| 14 | 密封环 | A20X24-AL | 2 | 07119963340 | $0.38 | Shop at ECS Tuning | ||||
| 15 | 密封件 不含石棉 | 1 | 24111215404 | $3.13 | Shop at ECS Tuning | |||||
| 16 | 六角螺栓及平垫圈 | M6X28-Z3 | 8 | 07119915183 | 已经终止 | Shop at ECS Tuning | ||||
| 16 | 六角螺栓 | M6X28-8.8-ZNS | 8 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 仅连接 | ||||||||||
| -- | 平垫圈 | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 17 | 密封塞 | 2 | 21111225047 | $6.62 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525e ZF 4HP22/24 壳体部件/供油?
- This technical diagram illustrates the ZF 4HP22/24 壳体部件/供油 within the 自动变速箱 group for the 5 Series E28 525e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the 变矩器壳 (Part #24411215732).
- Which models use the hardware listed in this ZF 4HP22/24 壳体部件/供油?
- The hardware and components featured in the ZF 4HP22/24 壳体部件/供油 are specific to the 5 Series E28 525e produced during 1987. These technical specifications ensure that parts like the 变矩器壳 (24411215732) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ZF 4HP22/24 壳体部件/供油 assembly?
- Each item in the ZF 4HP22/24 壳体部件/供油 corresponds to the numbered list below the illustration. For the 5 Series E28 525e, you can identify the 变矩器壳 by locating its position on the schematic, which then links to the official BMW part number 24411215732 for the 自动变速箱 section.
