手动变速箱换档 for BMW 3 Series E30 325ix (1987)

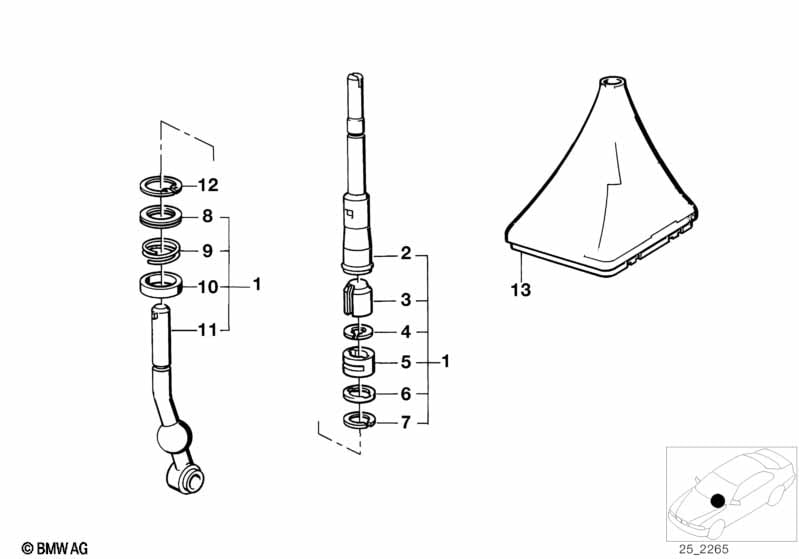

This 手动变速箱换档 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 换档杆 短 | 1 | 09/1986 | 09/1989 | 25111221096 | $68.20 | Shop at ECS Tuning | |||
| 02 | 换档杆上部 | 1 | 09/1986 | 09/1989 | 25111220778 | $91.80 | Shop at ECS Tuning | |||
| 03 | 盖罩 | 1 | 09/1989 | 25111220228 | $3.31 | Shop at ECS Tuning | ||||
| 05 | 橡胶环 | 1 | 09/1989 | 23411666133 | $1.77 | Shop at ECS Tuning | ||||
| 06 | 平垫圈 | 1 | 09/1989 | 25111220221 | $4.39 | Shop at ECS Tuning | ||||
| 07 | 弹簧圈 | 1 | 09/1989 | 23411666122 | $1.75 | Shop at ECS Tuning | ||||
| 08 | 隔套 | 1 | 09/1989 | 23411200844 | $2.27 | Shop at ECS Tuning | ||||
| 09 | 压力弹簧 | 1 | 09/1989 | 23411200845 | $1.33 | Shop at ECS Tuning | ||||
| 10 | 球头衬套 上部 | 1 | 09/1989 | 23411466110 | $8.01 | Shop at ECS Tuning | ||||
| 11 | 换档杆下部 | 1 | 09/1989 | 25117533354 | $29.80 | +core | Shop at ECS Tuning | |||
| 12 | 防松环 | 1 | 09/1989 | 23411466112 | $0.68 | Shop at ECS Tuning | ||||
| 13 | 换档杆盖板 | SCHWARZ | 1 | 09/1989 | 25111220204 | $31.91 | Shop at ECS Tuning |
备注
- +core = plus core charge (possibility of a return of the old part)
