车轮轴承 for BMW 6 Series E24 633CSi

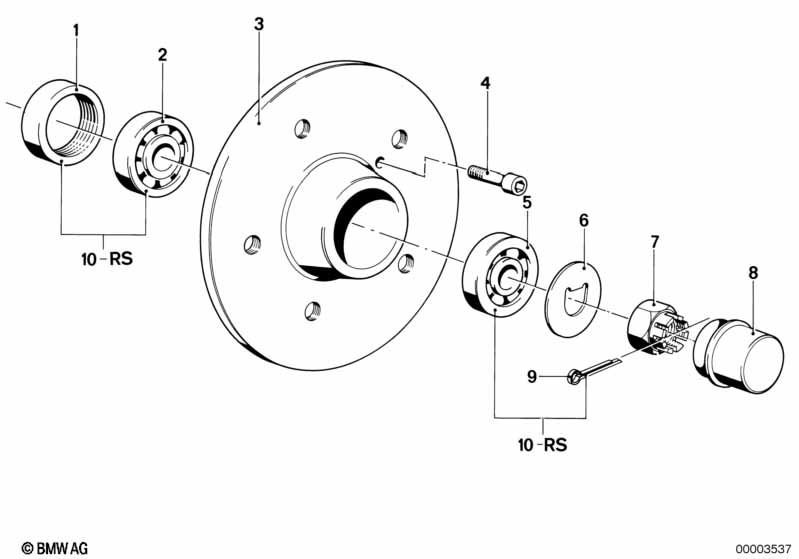

This 车轮轴承 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 轴密封环 | 45X62X7 | 2 | 06/1978 | 31212634108 | $12.32 | Shop at ECS Tuning | |||
| 01 | 轴密封环 | 2 | 06/1978 | 31211106218 | 已经终止 | Shop at ECS Tuning | ||||
| 01 | 轴密封环 | 2 | 06/1978 | 09/1982 | 31211119200 | $12.63 | Shop at ECS Tuning | |||
| 02 | 修理套件 车轮轴承 | 2 | 06/1978 | 09/1982 | 31211119571 | $94.27 | Shop at ECS Tuning | |||
| 03 | 轮毂 | 2 | 09/1982 | 31211123434 | $117.73 | 已经终止 | Shop at ECS Tuning | |||
| 04 | 内六角螺栓 | M8X12 | 2 | 04/1977 | 09/1982 | 34111123072 | $1.32 | Shop at ECS Tuning | ||
| 05 | 滚锥轴承 | 19X45,23X15,49 | 2 | 06/1978 | 31212634103 | $15.45 | 已经终止 | Shop at ECS Tuning | ||
| 05 | 修理套件 车轮轴承 | 2 | 06/1978 | 09/1982 | 31211119571 | $94.27 | Shop at ECS Tuning | |||
| 06 | 平垫圈 | 2 | 09/1982 | 31212634115 | $9.20 | Shop at ECS Tuning | ||||
| 07 | 冠状螺母 | M16X1 | 2 | 09/1982 | 31211104626 | $7.49 | Shop at ECS Tuning | |||
| 08 | 密封盖 | 2 | 09/1982 | 31212634120 | $6.03 | Shop at ECS Tuning | ||||
| 09 | 开口销 | 2 | 09/1982 | 31211110140 | $0.42 | Shop at ECS Tuning | ||||
| 10 | 修理套件 车轮轴承 | 2 | 06/1978 | 09/1982 | 31211119571 | $94.27 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
