前桥架粱/横向摆臂 for BMW 3 Series E36 325i (1991)

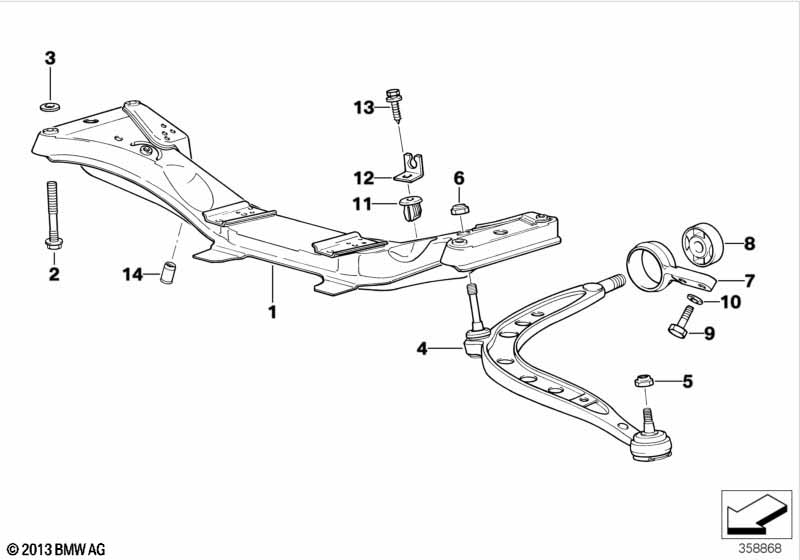

This 前桥架粱/横向摆臂 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 前桥架梁 | 1 | 09/1992 | 31111141023 | $521.29 | Shop at ECS Tuning | ||||
| 02 | 带肩螺钉 | M12X1,5X85 12.9 | 4 | 09/1992 | 31101141214 | $4.28 | Shop at ECS Tuning | |||
| 03 | 锁紧垫圈 | 4 | 09/1992 | 31111141033 | $5.36 | Shop at ECS Tuning | ||||
| 04 | 横向摆臂 左 | 1 | 31126758513 | $179.04 | Shop at ECS Tuning | |||||
| 维修需要 | ||||||||||
| 04 | 横向摆臂 右 | 1 | 31126758514 | $179.04 | Shop at ECS Tuning | |||||
| 维修需要 | ||||||||||
| -- | 平垫圈 | A10,5X22 | 2 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| -- | 六角螺栓 | M10X40 | 2 | 31111137888 | $3.33 | Shop at ECS Tuning | ||||
| -- | 六角螺母 自锁式 | M12X1.5-05 ZNS3 | 1 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| -- | 六角螺母 自锁式 | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 04 | 修理套件 横向摆臂 右侧 | VALUE PARTS | 1 | 31122339996 | Shop at ECS Tuning | |||||
| 固定件，附件 | ||||||||||
| 04 | 修理套件 横向摆臂 左侧 | VALUE PARTS | 1 | 31122339997 | 已经终止 | Shop at ECS Tuning | ||||
| 固定件，附件 | ||||||||||
| 04 | 横向摆臂 左 | 1 | 31126758513 | $179.04 | Shop at ECS Tuning | |||||
| 维修需要 | ||||||||||
| -- | 平垫圈 | A10,5X22 | 2 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 固定件，附件 | ||||||||||
| -- | 六角螺栓 | M10X40 | 2 | 31111137888 | $3.33 | Shop at ECS Tuning | ||||
| 固定件，附件 | ||||||||||
| -- | 六角螺母 自锁式 | M12X1.5-05 ZNS3 | 1 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 固定件，附件 | ||||||||||
| -- | 六角螺母 自锁式 | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 固定件，附件 | ||||||||||
| 05 | 六角螺母 自锁式 | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 06 | 六角螺母 自锁式 | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 07 | 支架 横向摆臂 左 | 1 | 31121139789 | $41.72 | 已经终止 | Shop at ECS Tuning | ||||
| 07 | 支架 横向摆臂 右 | 1 | 31121139790 | $41.72 | 已经终止 | Shop at ECS Tuning | ||||
| 08 | 组件 橡胶支座 横向摆臂 | 1 | 31129059288 | $30.37 | Shop at ECS Tuning | |||||
| 09 | 六角螺栓 | M10X40 | 4 | 31111137888 | $3.33 | Shop at ECS Tuning | ||||
| 10 | 平垫圈 | A10,5X22 | 4 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 11 | 膨胀螺母 | 1 | 52531451393 | $0.75 | 已经终止 | Shop at ECS Tuning | ||||
| 12 | 支架 | 1 | 32411139752 | 已经终止 | Shop at ECS Tuning | |||||
| 13 | 六角自攻螺钉 | ST4,2X13-C-Z2 | 1 | 07119916914 | $0.18 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
