空气弹簧减震支柱 前 全轮驱动车辆 for BMW 7 Series G12 LCI M760iX

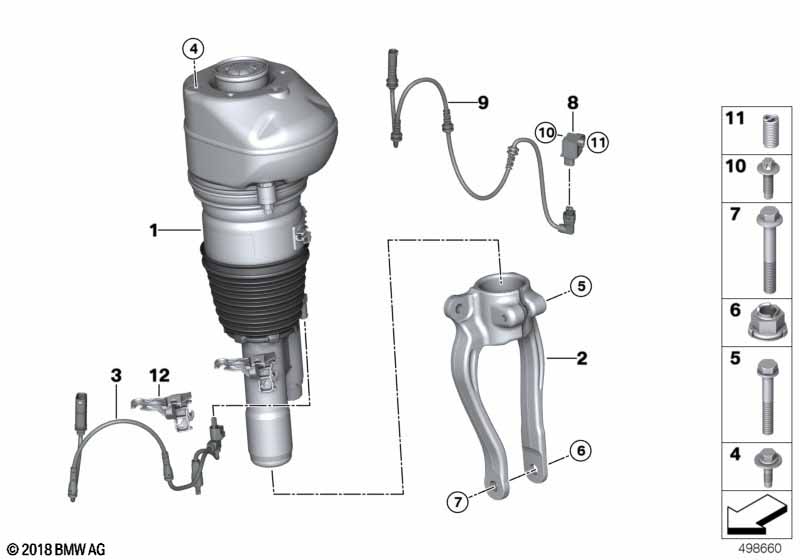

This 空气弹簧减震支柱 前 全轮驱动车辆 technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI M760iX. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP 空气弹簧减震支柱 左前 | 1 | 08/2019 | 37106881061 | 已经终止 | Shop at ECS Tuning | ||||
| 01 | RP 空气弹簧减震支柱 右前 | 1 | 08/2019 | 37106881062 | 已经终止 | Shop at ECS Tuning | ||||
| 01 | RP 空气弹簧减震支柱 左前 | MPA | 1 | 05/2020 | 37106899045 | 已经终止 | Shop at ECS Tuning | |||
| 01 | RP 空气弹簧减震支柱 右前 | MPA | 1 | 08/2020 | 37106899046 | 已经终止 | Shop at ECS Tuning | |||
| 01 | 空气弹簧减震支柱 左前 | MPA | 1 | 37107915949 | Shop at ECS Tuning | |||||
| 01 | 空气弹簧减震支柱 右前 | MPA | 1 | 37107915950 | Shop at ECS Tuning | |||||
| 02 | 减震支柱支架 左侧 | 1 | 31126861199 | Shop at ECS Tuning | ||||||
| 02 | 减震支柱支架 右侧 | 1 | 31126861200 | Shop at ECS Tuning | ||||||
| 03 | 适配导线 VDC 左侧 | 1 | 37106869073 | Shop at ECS Tuning | ||||||
| 03 | 适配导线 VDC 右侧 | 1 | 37106869074 | Shop at ECS Tuning | ||||||
| 04 | 六角螺栓 带法兰 自攻式 | M8X30-10.9 ZNS3 | 6 | 31306865312 | Shop at ECS Tuning | |||||
| 05 | 六角螺栓 带凸肩 | M10X60 | 2 | 07119904161 | Shop at ECS Tuning | |||||
| 06 | 组合仪表螺母 | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 07 | 六角带肩螺钉 | M14X1,5X95 10.9 | 2 | 07119906100 | Shop at ECS Tuning | |||||
| 08 | 加速传感器 | 2 | 37146861319 | Shop at ECS Tuning | ||||||
| 09 | 电缆 车轮加速传感器 | 2 | 37146861345 | Shop at ECS Tuning | ||||||
| 10 | 星形螺栓 | 2 | 11127624088 | Shop at ECS Tuning | ||||||
| 11 | Heli-Coil 螺纹修复件 | M6 | 2 | 07149365479 | Shop at ECS Tuning | |||||
| 12 | 支架 左 | 1 | 37106882179 | Shop at ECS Tuning | ||||||
| 12 | 支架 右 | 1 | 37106882180 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
