转向柱-转向轴 上部 for BMW 3 Series E36 328i (1994)

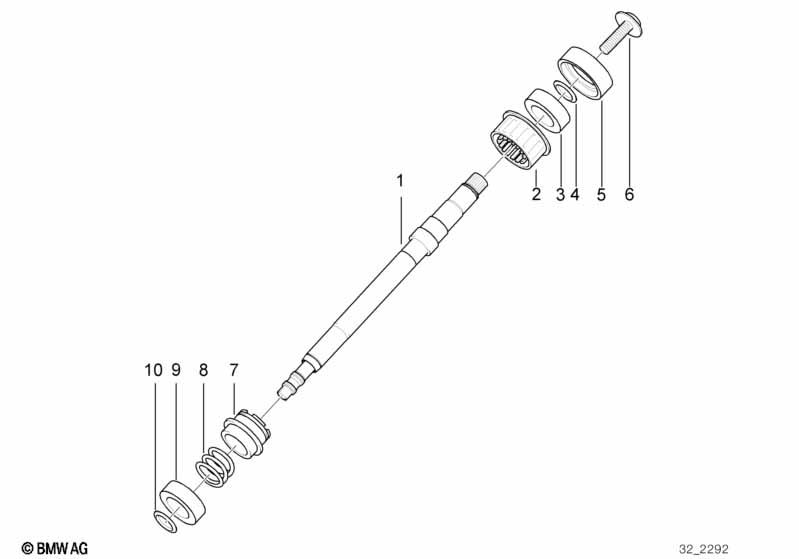

This 转向柱-转向轴 上部 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 上部转向轴 | 1 | 32311159160 | $63.37 | Shop at ECS Tuning | |||||
| 02 | 转向轴承 塑料 | 1 | 32311158835 | $10.93 | Shop at ECS Tuning | |||||
| 03 | 防爆胎辅圈 | 1 | 32311158478 | $2.43 | Shop at ECS Tuning | |||||
| 04 | 卡环 | 1 | 32311157968 | $0.25 | Shop at ECS Tuning | |||||
| 05 | 环 | 1 | 32311157966 | $1.82 | Shop at ECS Tuning | |||||
| 06 | 星形螺栓 微封闭 | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 07 | 转向轴承 钢 | 1 | 32311158686 | $31.56 | Shop at ECS Tuning | |||||
| 08 | 压力弹簧 | 1 | 32331156895 | $0.75 | Shop at ECS Tuning | |||||
| 09 | 环 | 1 | 32311112959 | $3.83 | Shop at ECS Tuning | |||||
| 10 | 卡环 | 1 | 32311113566 | $0.37 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i 转向柱-转向轴 上部?
- This technical diagram illustrates the 转向柱-转向轴 上部 within the 转向系和车桥测量 group for the 3 Series E36 328i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the 上部转向轴 (Part #32311159160).
- Which models use the hardware listed in this 转向柱-转向轴 上部?
- The hardware and components featured in the 转向柱-转向轴 上部 are specific to the 3 Series E36 328i produced during 1994. These technical specifications ensure that parts like the 上部转向轴 (32311159160) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 转向柱-转向轴 上部 assembly?
- Each item in the 转向柱-转向轴 上部 corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the 上部转向轴 by locating its position on the schematic, which then links to the official BMW part number 32311159160 for the 转向系和车桥测量 section.
