转向辅助泵 for BMW 5 Series E60 525i (2004)

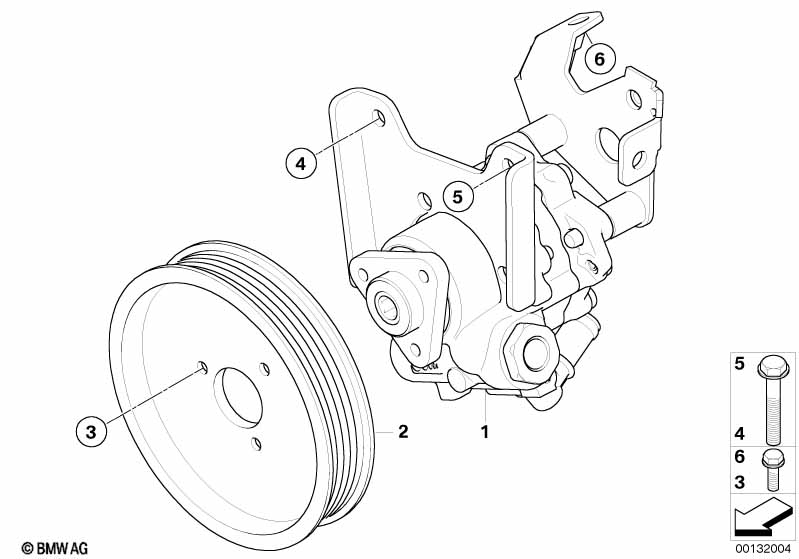

This 转向辅助泵 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用于车辆及 D Steering 或者 动态行驶稳定装置 |
S217A=否 S229A=否 |
||||||||
| 01 | 转向辅助泵 | ZF | 1 | 32416766190 | $668.37 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 皮带轮 | D=116MM | 1 | 32427516848 | $111.75 | Shop at ECS Tuning | ||||
| 03 | 六角螺栓及平垫圈 | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | 六角螺栓及平垫圈 | M8X70-Z1-ZNS3 | 1 | 07119906675 | Shop at ECS Tuning | |||||
| 05 | 六角螺栓及平垫圈 | M8X100-U1-8.8 | 1 | 07119905403 | $1.69 | Shop at ECS Tuning | ||||
| 06 | 六角螺栓及平垫圈 | M8X22 | 1 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
