后驱动桥壳体盖 / 脉冲传感器 for BMW 3 Series E36 320i (1994)

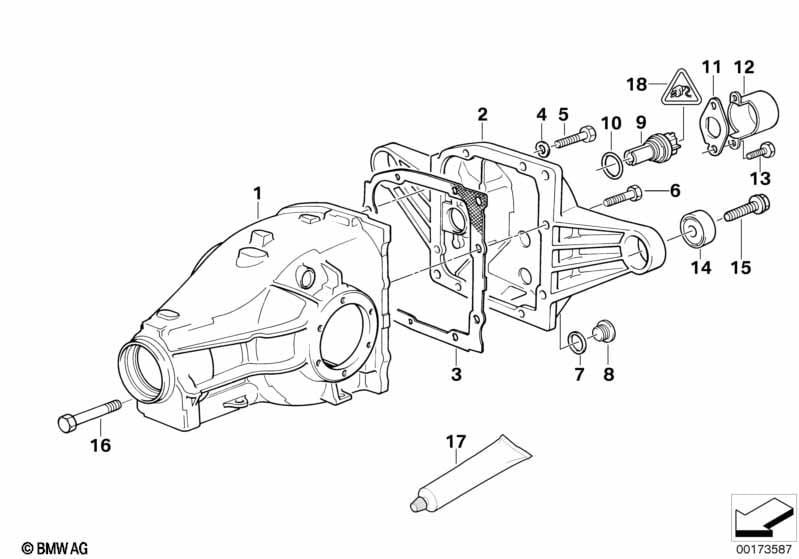

This 后驱动桥壳体盖 / 脉冲传感器 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 注意维修说明 | ||||||||||
| 02 | 变速箱盖罩 及橡胶支座 | TYP 168 | 1 | 33111212662 | $119.60 | 已经终止 | Shop at ECS Tuning | |||
| 03 | 密封件 不含石棉 | TYP 168 | 1 | 33111212901 | $1.81 | Shop at ECS Tuning | ||||
| 04 | 弹簧垫片 | B10-ZNS3 | 6 | 09/1999 | 07119904463 | Shop at ECS Tuning | ||||
| 04 | 垫圈 | D=10MM | 6 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 05 | 六角螺栓 | M10X25 8.8 | 2 | 07119908569 | Shop at ECS Tuning | |||||
| 06 | 六角螺栓 | M10X70-8.8 ZNS3 | 4 | 07119903068 | $4.63 | Shop at ECS Tuning | ||||
| 07 | 密封环 | A22X27-AL | 2 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 08 | 放油螺塞，带 O 形环 | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| 09 | 脉冲传感器 车速表 | 1 | 62168357020 | $29.63 | Shop at ECS Tuning | |||||
| 10 | O 形环 | 1 | 33111210739 | Shop at ECS Tuning | ||||||
| 11 | 定位板 | 1 | 33111206076 | $2.65 | Shop at ECS Tuning | |||||
| 12 | 防松片 | 1 | 62161365817 | $15.34 | Shop at ECS Tuning | |||||
| 13 | 六角螺栓 | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 14 | 橡胶支座 | 2 | 33171134872 | $15.18 | Shop at ECS Tuning | |||||
| 15 | 六角螺栓及平垫圈 | M12X1,5X40 | 2 | 33171136186 | $1.41 | 已经终止 | Shop at ECS Tuning | |||
| 16 | 六角螺栓及平垫圈 | M12X1,5X80 ZNS3 | 1 | 33176760337 | $1.81 | Shop at ECS Tuning | ||||
| 17 | 液态密封剂 Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 18 | Plug housing, white | 1 | 61131378417 | $1.15 | Shop at ECS Tuning | |||||
| 仅连接 | ||||||||||
| -- | 圆形插套 2.5 防水 | 0,5-1,0 MM² | 1 | 61130007445 | $5.58 | Shop at ECS Tuning | ||||
| -- | 圆形插套 2.5 防水 | 1,0-2,5 MM² | 1 | 61130007446 | $5.80 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
