高度调节/管路/安装件 for BMW 7 Series G11 LCI 730dX (2020)

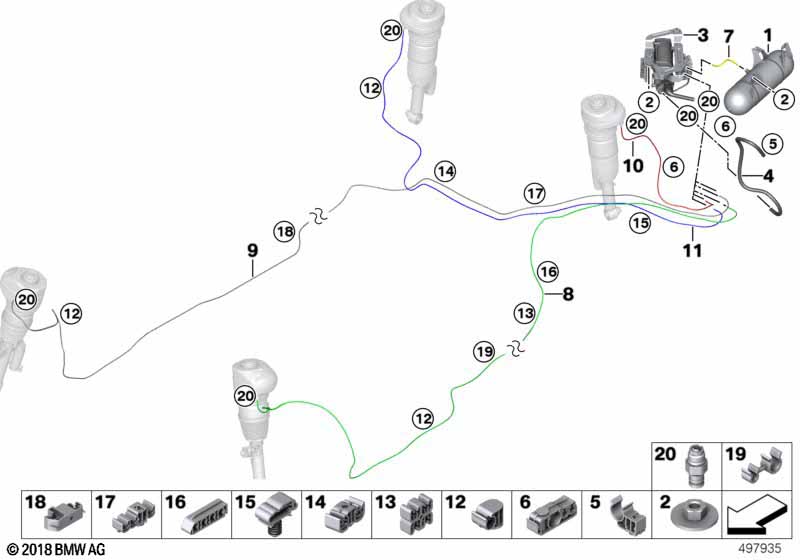

This 高度调节/管路/安装件 technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 蓄压器 | 4LITER | 1 | 37206861937 | Shop at ECS Tuning | |||||
| 02 | 组合仪表螺母 | 6 | 07147305178 | Shop at ECS Tuning | ||||||
| 03 | 供气装置 | 1 | 37206884682 | Shop at ECS Tuning | ||||||
| 04 | 通风管路 | 1 | 37206861931 | Shop at ECS Tuning | ||||||
| 05 | 导线夹 单 | 1 | 37206870526 | Shop at ECS Tuning | ||||||
| 06 | 支架 制动管路 3 层 | 1 | 34326857528 | Shop at ECS Tuning | ||||||
| 07 | 进气管 | GELB | 1 | 37206861939 | Shop at ECS Tuning | |||||
| 08 | 进气管 左前 | GRÜN | 1 | 37206861935 | Shop at ECS Tuning | |||||
| 09 | 进气管 右前 | SCHWARZ | 1 | 37206861930 | Shop at ECS Tuning | |||||
| 10 | 进气管 左后 | ROT | 1 | 37206861927 | Shop at ECS Tuning | |||||
| 11 | 进气管 右后 | BLAU | 1 | 37206861928 | Shop at ECS Tuning | |||||
| 12 | 支架 制动管路 | 3 | 34326855500 | Shop at ECS Tuning | ||||||
| 12 | 导线夹 单 | 2 | 37206875836 | Shop at ECS Tuning | ||||||
| 13 | 管道夹 | 5 | 37226776050 | $0.63 | Shop at ECS Tuning | |||||
| 14 | 导线夹 双 | 2 | 34306858578 | Shop at ECS Tuning | ||||||
| 15 | 导线架 | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 16 | 定距支架 4 倍 | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 17 | 管道夹 三联 | 1 | 37206870527 | Shop at ECS Tuning | ||||||
| 18 | 定位夹 | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 19 | 软管保持架 双重架 | 1 | 34322333077 | $2.71 | Shop at ECS Tuning | |||||
| 20 | 螺纹接头 | D=4MM | 8 | 37221092403 | $3.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 LCI 730dX 高度调节/管路/安装件?
- This technical diagram illustrates the 高度调节/管路/安装件 within the 后桥 group for the 7 Series G11 LCI 730dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the 蓄压器 (Part #37206861937).
- Which models use the hardware listed in this 高度调节/管路/安装件?
- The hardware and components featured in the 高度调节/管路/安装件 are specific to the 7 Series G11 LCI 730dX produced during 2020. These technical specifications ensure that parts like the 蓄压器 (37206861937) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 高度调节/管路/安装件 assembly?
- Each item in the 高度调节/管路/安装件 corresponds to the numbered list below the illustration. For the 7 Series G11 LCI 730dX, you can identify the 蓄压器 by locating its position on the schematic, which then links to the official BMW part number 37206861937 for the 后桥 section.
