压力调节器/蓄压器 for BMW 6 Series E24 635CSi (1989)

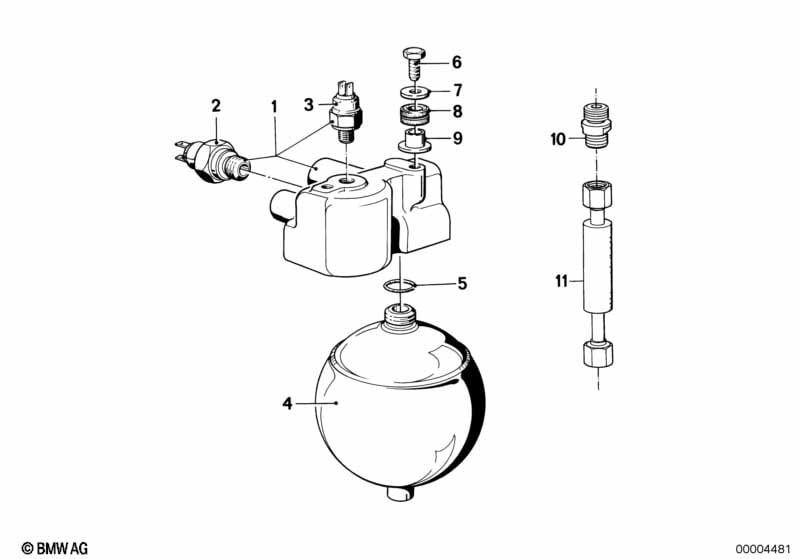

This 压力调节器/蓄压器 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 调节器 | 1 | 05/1982 | 34331153303 | $878.30 | 已经终止 | Shop at ECS Tuning | |||
| 01 | 调节器 | 1 | 05/1982 | 34331153303 | $878.30 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 油压开关 | M10X1 ZYL. | 1 | 05/1982 | 34351182270 | $40.63 | Shop at ECS Tuning | |||
| 02 | 油压开关 | M10X1 ZYL. | 1 | 05/1982 | 34351182270 | $40.63 | Shop at ECS Tuning | |||
| 03 | 制动压力差开关 | 1 | 05/1982 | 34331150922 | $43.02 | 已经终止 | Shop at ECS Tuning | |||
| 03 | 制动压力差开关 | 1 | 05/1982 | 34331150922 | $43.02 | 已经终止 | Shop at ECS Tuning | |||
| 04 | 蓄压器 | 1 | 05/1982 | 34331162054 | $296.50 | Shop at ECS Tuning | ||||
| 04 | 蓄压器 | 1 | 05/1982 | 34331162054 | $296.50 | Shop at ECS Tuning | ||||
| 05 | O 形环 | 15,3X2,4 | 1 | 05/1982 | 34331119868 | $1.85 | 已经终止 | Shop at ECS Tuning | ||
| 05 | O 形环 | 15,3X2,4 | 1 | 05/1982 | 34331119868 | $1.85 | 已经终止 | Shop at ECS Tuning | ||
| 06 | 六角螺栓 | M8X30-ZN | 2 | 05/1982 | 07119913662 | $0.22 | Shop at ECS Tuning | |||
| 06 | 六角螺栓 | M8X30-ZN | 2 | 05/1982 | 07119913662 | $0.22 | Shop at ECS Tuning | |||
| 06 | 六角螺栓 | M8X30 | 2 | 05/1982 | 07119913664 | $0.47 | Shop at ECS Tuning | |||
| 06 | 六角螺栓 | M8X30 | 2 | 05/1982 | 07119913664 | $0.47 | Shop at ECS Tuning | |||
| 07 | 平垫圈 | A8,4X25 | 2 | 05/1982 | 07147201571 | $0.20 | Shop at ECS Tuning | |||
| 07 | 平垫圈 | A8,4X25 | 2 | 05/1982 | 07147201571 | $0.20 | Shop at ECS Tuning | |||
| 08 | 橡胶密封圈 | 2 | 05/1982 | 37211119643 | $1.45 | Shop at ECS Tuning | ||||
| 08 | 橡胶密封圈 | 2 | 05/1982 | 37211119643 | $1.45 | Shop at ECS Tuning | ||||
| 09 | 轴套 | 1 | 05/1982 | 34331152502 | $3.00 | Shop at ECS Tuning | ||||
| 09 | 轴套 | 1 | 05/1982 | 34331152502 | $3.00 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi 压力调节器/蓄压器?
- This technical diagram illustrates the 压力调节器/蓄压器 within the 制动 group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the 调节器 (Part #34331153303).
- Which models use the hardware listed in this 压力调节器/蓄压器?
- The hardware and components featured in the 压力调节器/蓄压器 are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the 调节器 (34331153303) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 压力调节器/蓄压器 assembly?
- Each item in the 压力调节器/蓄压器 corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the 调节器 by locating its position on the schematic, which then links to the official BMW part number 34331153303 for the 制动 section.
