制动管路 前部 DSC for BMW 3 Series E46 316i (2003)

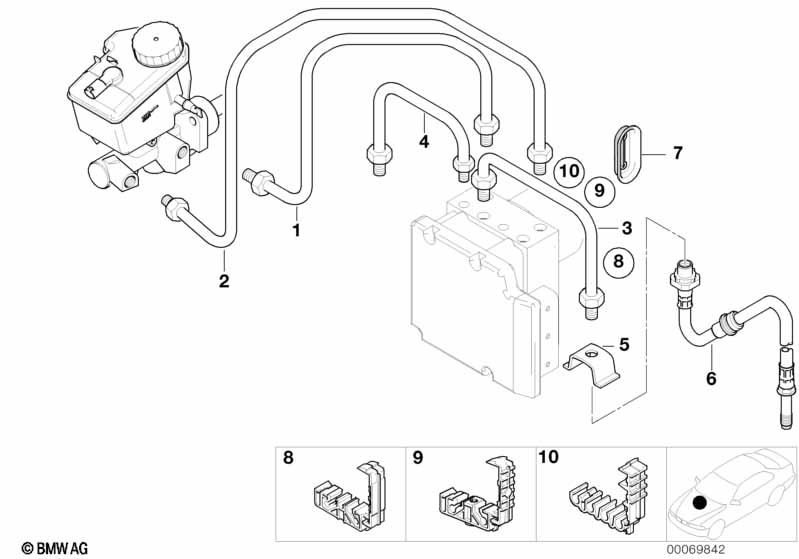

This 制动管路 前部 DSC technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 管道 带压力软管 | M12/M12 | 1 | 09/2000 | 34326759219 | Shop at ECS Tuning | ||||
| 02 | 管道 带压力软管 | M12/M12 | 1 | 09/2000 | 34326753093 | +core | Shop at ECS Tuning | |||
| 03 | 管道 | M10/M12-2034MM | 1 | 09/2000 | 34326761164 | Shop at ECS Tuning | ||||
| 04 | 管道 | M10/M10-1012MM | 1 | 09/2000 | 34326755604 | $8.65 | Shop at ECS Tuning | |||
| 05 | 止动弹簧 | 2 | 09/2000 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 06 | 制动软管 前部 | 2 | 09/2000 | 34326766966 | $46.95 | Shop at ECS Tuning | ||||
| 07 | 橡胶密封圈 | 2 | 09/2000 | 34331161163 | $1.53 | Shop at ECS Tuning | ||||
| 08 | 支架 制动管路 4 层 | 1 | 09/2000 | 34301165471 | $1.85 | Shop at ECS Tuning | ||||
| 09 | 支架 制动管路 5 层 | 2 | 09/2000 | 34301164313 | $2.23 | Shop at ECS Tuning | ||||
| 10 | 定距支架 4 倍 | 3 | 09/2000 | 34326777692 | $0.38 | Shop at ECS Tuning |
备注
- +core = plus core charge (possibility of a return of the old part)
