下部制动管路 (S541A) for BMW 5 Series E61 525i (2007)

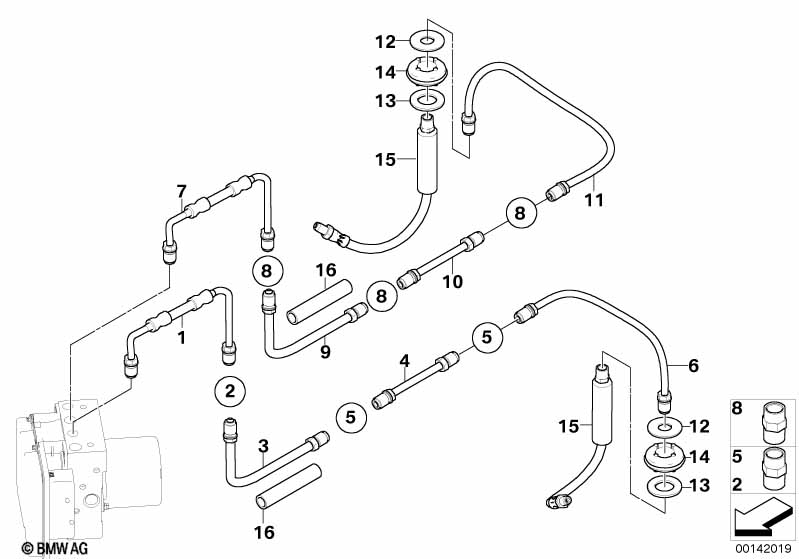

This 下部制动管路 (S541A) technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用于车辆及 自适应巡航控制系统 |
S541A=是 |
||||||||
| 01 | 管道 带压力软管 | 1 | 02/2006 | 34326772479 | $32.47 | Shop at ECS Tuning | ||||
| 02 | 中间件 | M12X1 | 1 | 09/2005 | 34326759268 | $4.22 | Shop at ECS Tuning | |||
| 03 | 管道 | M12/M12 | 1 | 09/2005 | 34326772482 | $14.13 | Shop at ECS Tuning | |||
| 04 | 管道 | M12/M12 | 1 | 09/2005 | 34326772486 | $25.02 | Shop at ECS Tuning | |||
| 05 | 中间件 | M12X1 | 2 | 09/2005 | 34326757285 | $4.08 | Shop at ECS Tuning | |||
| 06 | 管道 | M10/M12 | 1 | 09/2005 | 34326772496 | $10.52 | Shop at ECS Tuning | |||
| 07 | 管道 带压力软管 | 1 | 02/2006 | 34326772480 | $31.70 | Shop at ECS Tuning | ||||
| 08 | 中间件 | M10X1 | 3 | 09/2005 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 10 | 管道 | M10/M10 | 1 | 09/2005 | 34326772490 | $39.15 | Shop at ECS Tuning | |||
| 11 | 管道 | M10/M10 | 1 | 09/2005 | 34326772504 | $10.32 | Shop at ECS Tuning | |||
| 12 | 平垫圈 | 14X25X2-ZNS3 | 2 | 09/2005 | 34301163613 | $0.83 | Shop at ECS Tuning | |||
| 13 | 平垫圈 | 10X25X1,5-ZNS3 | 2 | 09/2005 | 37131114028 | $0.80 | Shop at ECS Tuning | |||
| 14 | 橡胶密封圈 | 2 | 09/2005 | 34306865954 | Shop at ECS Tuning | |||||
| 15 | 制动软管 后部 | 2 | 09/2005 | 34306795676 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 525i 下部制动管路 (S541A)?
- This technical diagram illustrates the 下部制动管路 (S541A) within the 制动 group for the 5 Series E61 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the 管道 带压力软管 (Part #34326772479).
- Which models use the hardware listed in this 下部制动管路 (S541A)?
- The hardware and components featured in the 下部制动管路 (S541A) are specific to the 5 Series E61 525i produced during 2007. These technical specifications ensure that parts like the 管道 带压力软管 (34326772479) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 下部制动管路 (S541A) assembly?
- Each item in the 下部制动管路 (S541A) corresponds to the numbered list below the illustration. For the 5 Series E61 525i, you can identify the 管道 带压力软管 by locating its position on the schematic, which then links to the official BMW part number 34326772479 for the 制动 section.
