液压机组 ABS / 控制单元 / 支架 for BMW 3 Series E36 325tds (1993)

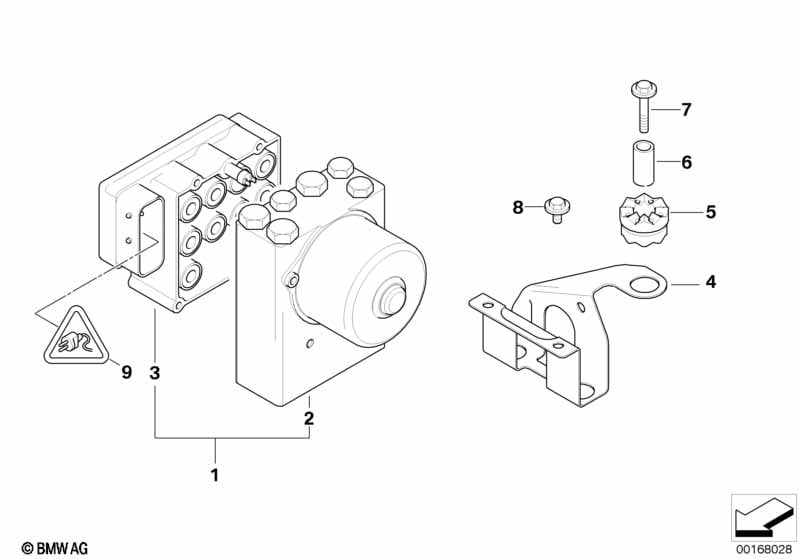

This 液压机组 ABS / 控制单元 / 支架 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 09 | 套筒壳体 | 25- POLIG | 21 | 61138364814 | $7.45 | Shop at ECS Tuning | ||||
| 仅连接 | ||||||||||
| -- | 圆形插套 2.5 ELA 带电缆 | 1,0-2,5 MM² | 1 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| -- | 插头触头 MQS ELA | 0.2-0.5 MM² SN | 1 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds 液压机组 ABS / 控制单元 / 支架?
- This technical diagram illustrates the 液压机组 ABS / 控制单元 / 支架 within the 制动 group for the 3 Series E36 325tds produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the 套筒壳体 (Part #61138364814).
- Which models use the hardware listed in this 液压机组 ABS / 控制单元 / 支架?
- The hardware and components featured in the 液压机组 ABS / 控制单元 / 支架 are specific to the 3 Series E36 325tds produced during 1993. These technical specifications ensure that parts like the 套筒壳体 (61138364814) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 液压机组 ABS / 控制单元 / 支架 assembly?
- Each item in the 液压机组 ABS / 控制单元 / 支架 corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the 套筒壳体 by locating its position on the schematic, which then links to the official BMW part number 61138364814 for the 制动 section.
