踩踏油门/杠杆机构 for BMW 1502-2002tii 2002tii

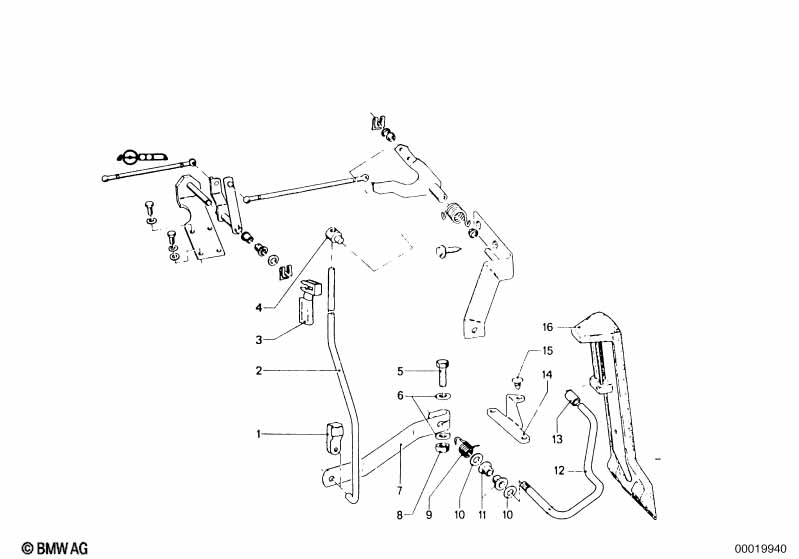

This 踩踏油门/杠杆机构 technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | BMW Classic | 1 | 13214440170 | 已经终止 | Shop at ECS Tuning | |||||
| 02 | 拉杆 | 1 | 35411107372 | $14.08 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 止动弹簧 | 1 | 35411105778 | $7.38 | Shop at ECS Tuning | |||||
| 04 | 销 | 1 | 35414440133 | $7.05 | Shop at ECS Tuning | |||||
| 05 | 六角螺栓 | M6X25 | 1 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 06 | 平垫圈 | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | 杠杆 | 1 | 35411110447 | $15.57 | 已经终止 | Shop at ECS Tuning | ||||
| 08 | 六角螺母 | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | 扭转弹簧 | 1 | 35411108676 | $3.38 | Shop at ECS Tuning | |||||
| 10 | 平垫圈 | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | 轴套 | 2 | 35411108237 | $1.87 | Shop at ECS Tuning | |||||
| 12 | 轴 | 1 | 35414440121 | $32.85 | Shop at ECS Tuning | |||||
| 13 | 轴套 | 1 | 35414440122 | $4.09 | Shop at ECS Tuning | |||||
| 14 | 挡块 | 1 | 35411107370 | 已经终止 | Shop at ECS Tuning | |||||
| 15 | 缓冲挡块 离合器踏板 | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 16 | 加速踏板 | 1 | 35411102054 | $58.18 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
