钢制盘式轮辋 式样 12 for BMW 5 Series E60 525i (2002)

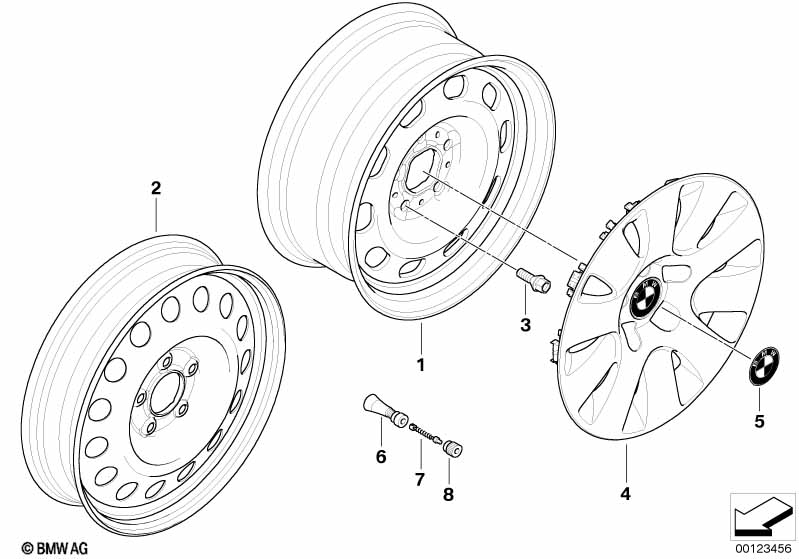

This 钢制盘式轮辋 式样 12 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 仅用于冬季用轮胎 | |||||||||
| 01 | 钢制盘式轮辋 schwarz | 7JX16 ET:20 | 4 | 36116765633 | $110.95 | 已经终止, +core | Shop at ECS Tuning | |||
| 02 | 应急备用轮胎 钢制 黑色 | 4BX17 ET:18 | 1 | 36116758778 | $66.00 | +core | Shop at ECS Tuning | |||
| 03 | 车轮螺栓 Schwarz | M12X1,5 | 20 | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 04 | 车轮整块饰板 | 16" | 4 | 36136768525 | Shop at ECS Tuning | |||||
| 05 | 带粘合膜的 BMW 冲压品牌标识 | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 06 | 轮胎气门嘴 | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 06 | 轮胎气门嘴 | L=42,5MM | 1 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 仅适用于 | ||||||||||
| -- | 应急备用轮胎 钢制 黑色 | 4BX17 ET:18 | X | 36116758778 | $66.00 | +core | Shop at ECS Tuning | |||
| 07 | 阀芯 | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | 阀盖罩 | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
