BMW 轻质铝合金轮辋 涡轮式 329 - 18'' for BMW 5 Series F10 LCI 530d (2013)

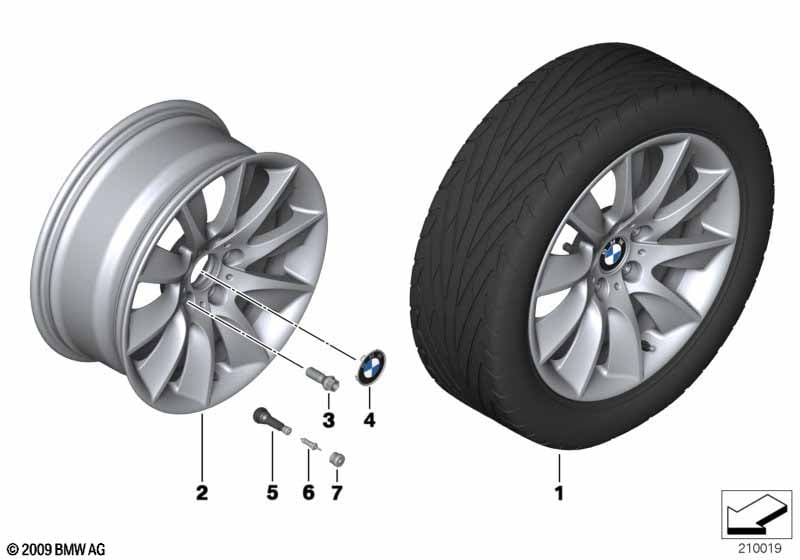

This BMW 轻质铝合金轮辋 涡轮式 329 - 18'' technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 提示: 仅适用于根据 EG BE 注册登记的车辆。选定的车轮 / 轮胎组合可能与注册有关。 请在车辆中 检查 CoC,车轮 / 轮胎组合是否已注册。 如果不是这种情况, 必要时事后需要进行 国家特有的注册登记!! 用于车辆及 BMW 轻质合金轮辋 涡轮机样式 329 |
S2AHA=是 |
||||||||
| 用于车辆及 BMW 轻质合金轮辋 涡轮机样式 329 |
S2AHA=是 |
|||||||||
| 02 | 轻合金盘式轮辋 | 9JX18 ET:44 | 2 | 36116790175 | +core | Shop at ECS Tuning | ||||
| 用于车辆及 BMW 轻质合金轮辋 涡轮机样式 329 或者 BMW 轻质合金轮辋 涡轮机样式 329 |
S2AHA=是 S2AKA=是 |
|||||||||
| 02 | 轻合金盘式轮辋 | 8JX18 ET:30 | 4 | 36116790174 | +core | Shop at ECS Tuning | ||||
| 03 | 车轮螺栓 Schwarz | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | 带铬边缘的轮毂盖板 | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | 轮胎气门嘴 | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 用于车辆及 胎压显示 |
S2VBA=是 |
|||||||||
| 05 | 螺纹阀门 轮胎压力监控 | 4 | 09/2010 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 06 | 阀芯 | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | 阀盖罩 | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 用于车辆及 胎压显示 |
S2VBA=是 |
|||||||||
| 07 | 阀门盖 RDC | 4 | 09/2010 | 36111095436 | $0.35 | Shop at ECS Tuning | ||||
备注
- +core = plus core charge (possibility of a return of the old part)
