BMW 轻质铝合金轮辋 多轮幅 414 - 17'' for BMW 3 Series F30 LCI 320i (2018)

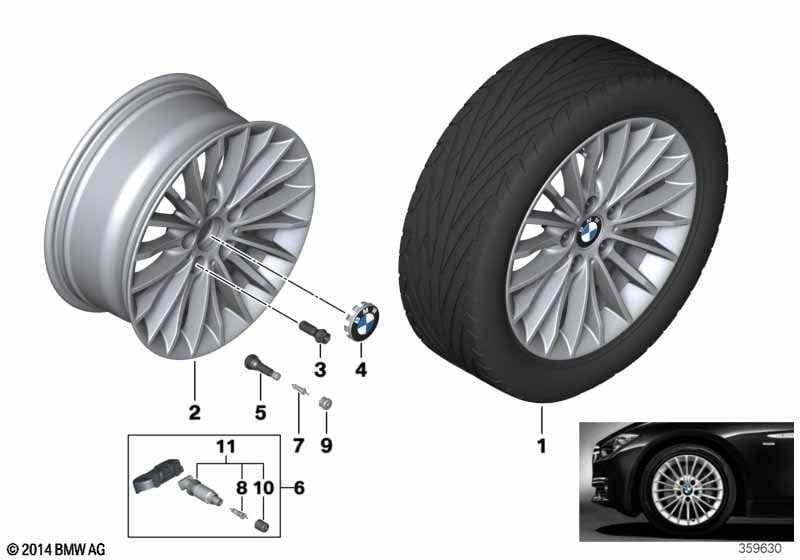

This BMW 轻质铝合金轮辋 多轮幅 414 - 17'' technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 注意： 根据欧盟蓄电池条例， 法律强制要求 RDC 传感器 或带有固定安装蓄电池的 部件务必具有 部件标识！购买此产品时， 必须打印随附文件 并交给 客户！ 提示： 仅适用于根据 EG BE 注册登记的车辆。选定的车轮 / 轮胎组合可能与注册有关。 请在车辆中 检查 CoC，车轮 / 轮胎组合是否已注册。 如果不是这种情况， 必要时事后需要进行 国家特有的注册登记！！ 用于车辆及 BMW 轻质铝合金轮圈 多轮幅 414 或者 BMW 轻金属车轮 多条轮辐 414 反光银色 |
S2H3A=是 S2HQA=是 |
||||||||
| 用于车辆及 运动型制动系统 |
SZP1A=否 |
|||||||||
| 02 | 轻合金盘式轮辋 reflex-silber | 7,5JX17 ET:37 | 4 | 03/2014 | 36116796241 | +core | Shop at ECS Tuning | |||
| 用于车辆及 BMW 轻金属车轮 多条轮辐 414 反光银色 和 运动型制动系统 颜色：Reflexsilber 亚光 |
S2HQA=是 SZP1A=否 |
|||||||||
| 02 | 轻合金盘式轮辋 reflex-silber | 7,5JX17 ET:37 | 4 | 03/2014 | 36116882587 | Shop at ECS Tuning | ||||
| 03 | 车轮螺栓 Schwarz | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | 带铬边缘的轮毂盖板 | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| 用于车辆及 胎压显示 |
S2VBA=否 |
|||||||||
| 05 | 轮胎气门嘴 | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 用于车辆及 胎压显示 |
S2VBA=是 |
|||||||||
| 06 | 车轮电子模块 RDCi 带螺纹气门 | 4 | 03/2014 | 36106881890 | Shop at ECS Tuning | |||||
| 用于车辆及 胎压显示 |
S2VBA=否 |
|||||||||
| 07 | 阀芯 | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 用于车辆及 胎压显示 |
S2VBA=是 |
|||||||||
| 08 | 气门芯 RDCi | 4 | 03/2014 | 36146867031 | Shop at ECS Tuning | |||||
| 用于车辆及 胎压显示 |
S2VBA=否 |
|||||||||
| 09 | 阀盖罩 | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| 用于车辆及 胎压显示 |
S2VBA=是 |
|||||||||
| 10 | 气门盖 RDCi | 4 | 03/2014 | 36146867030 | Shop at ECS Tuning | |||||
| 11 | 维修套件 螺纹气门 RDCi | 4 | 03/2014 | 36106876673 | Shop at ECS Tuning | |||||
备注
- +core = plus core charge (possibility of a return of the old part)
