车门密封条 前部 for BMW 6 Series E24 630CSi (1977)

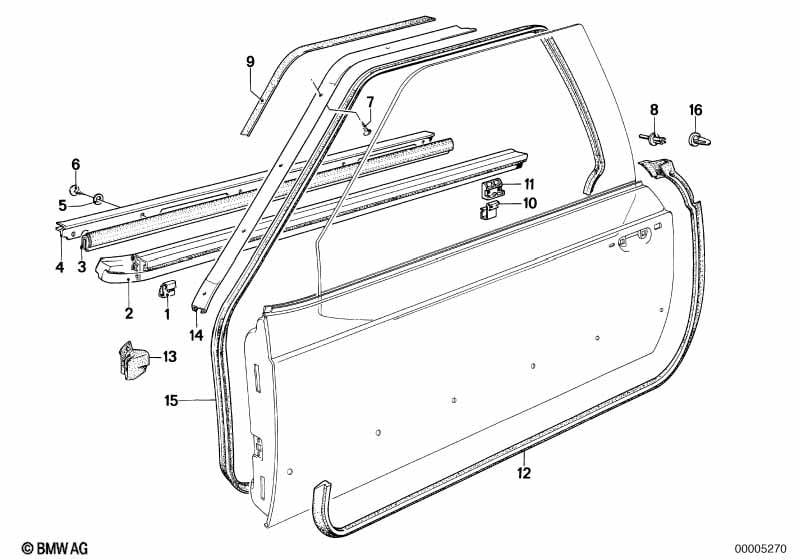

This 车门密封条 前部 technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 夹子 | 8 | 51361859970 | $3.90 | Shop at ECS Tuning | |||||
| 02 | 盖板 左 | 1 | 51211873461 | $236.92 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 盖板 右 | 1 | 51211873462 | $236.92 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 密封件 左 | 1 | 51211867763 | $29.48 | Shop at ECS Tuning | |||||
| 03 | 密封件 右 | 1 | 51211867764 | $29.48 | Shop at ECS Tuning | |||||
| 04 | 饰条 前部 左 | 1 | 51211843543 | $48.66 | Shop at ECS Tuning | |||||
| 04 | 饰条 前部 右 | 1 | 51211843544 | $48.66 | 已经终止 | Shop at ECS Tuning | ||||
| 05 | 垫圈 | 9X4,3X0,8-200HV | X | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 06 | 半圆头埋头自攻螺钉 | ST2,9X9,5 | X | 07119902399 | $0.98 | 已经终止 | Shop at ECS Tuning | |||
| 06 | 自攻螺钉 | 3,5X9,5 | X | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 07 | 半圆头自攻螺钉 | ST2,9X9,5 | X | 07119907707 | $0.09 | Shop at ECS Tuning | ||||
| 07 | 半圆头自攻螺钉 | B2,9X13 | X | 51211865837 | $5.55 | Shop at ECS Tuning | ||||
| 08 | 膨胀铆钉 | 6 | 46631233909 | $1.40 | Shop at ECS Tuning | |||||
| 09 | 充填橡胶 | X | 51211864228 | $29.41 | 已经终止 | Shop at ECS Tuning | ||||
| 10 | 夹子 | 2 | 51211936982 | $3.16 | Shop at ECS Tuning | |||||
| 11 | 导向装置 | 2 | 51211936981 | $6.07 | Shop at ECS Tuning | |||||
| 12 | 车门密封条 左 | 1 | 51211843923 | $119.42 | Shop at ECS Tuning | |||||
| 12 | 车门密封条 右 | 1 | 51211843924 | $119.42 | Shop at ECS Tuning | |||||
| 13 | 密封件 左 | 1 | 02/1979 | 51211839435 | $8.77 | Shop at ECS Tuning | ||||
| 13 | 密封件 右 | 1 | 02/1979 | 51211839436 | $13.19 | 已经终止 | Shop at ECS Tuning | |||
| 14 | 导轨 左 | 1 | 51211843829 | $32.27 | 已经终止 | Shop at ECS Tuning | ||||
| 14 | 导轨 右 | 1 | 51211843830 | $36.20 | 已经终止 | Shop at ECS Tuning | ||||
| 15 | 车门密封条 左 | 1 | 51211861501 | $412.76 | Shop at ECS Tuning | |||||
| 15 | 车门密封条 右 | 1 | 51211861502 | $412.76 | Shop at ECS Tuning | |||||
| 16 | 夹子 | 6 | 51221856946 | $0.44 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 630CSi 车门密封条 前部?
- This technical diagram illustrates the 车门密封条 前部 within the 毛坯车身 group for the 6 Series E24 630CSi produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the 夹子 (Part #51361859970).
- Which models use the hardware listed in this 车门密封条 前部?
- The hardware and components featured in the 车门密封条 前部 are specific to the 6 Series E24 630CSi produced during 1977. These technical specifications ensure that parts like the 夹子 (51361859970) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 车门密封条 前部 assembly?
- Each item in the 车门密封条 前部 corresponds to the numbered list below the illustration. For the 6 Series E24 630CSi, you can identify the 夹子 by locating its position on the schematic, which then links to the official BMW part number 51361859970 for the 毛坯车身 section.
