后行李箱盖 / 零件 for BMW 7 Series E23 735i (1982)

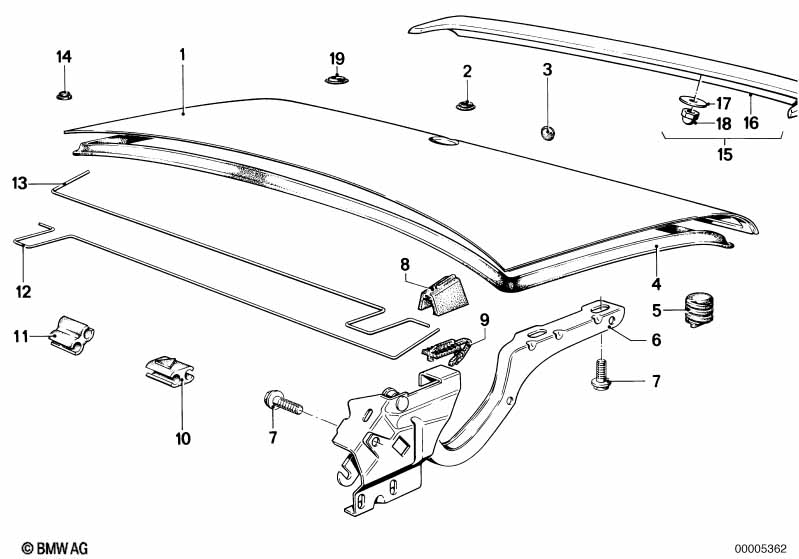

This 后行李箱盖 / 零件 technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 后行李箱盖 | 1 | 41621907277 | $480.68 | Shop at ECS Tuning | |||||
| 02 | 密封塞 | D=18,5MM | 1 | 51211838473 | $1.34 | Shop at ECS Tuning | ||||
| 03 | 密封塞 | D=11MM | 2 | 51141823900 | $1.18 | Shop at ECS Tuning | ||||
| 04 | 后行李箱盖密封件 | 1 | 51711847098 | $75.80 | Shop at ECS Tuning | |||||
| 05 | 缓冲挡块 | 2 | 51231852347 | $2.79 | Shop at ECS Tuning | |||||
| 06 | 铰链 左 | 1 | 41621858903 | $57.04 | Shop at ECS Tuning | |||||
| 06 | 铰链 右 | 1 | 41621858904 | $57.04 | Shop at ECS Tuning | |||||
| 07 | 六角螺栓及平垫圈 | M8X20-Z3 | X | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| 08 | 挡块 | 2 | 51241848474 | $1.12 | 已经终止 | Shop at ECS Tuning | ||||
| 09 | 挡块 | 2 | 51241848475 | $1.12 | 已经终止 | Shop at ECS Tuning | ||||
| 10 | 轴承座 | 2 | 51241815364 | $0.90 | Shop at ECS Tuning | |||||
| 11 | 轴承座 | 1 | 41625676221 | $2.59 | 已经终止 | Shop at ECS Tuning | ||||
| 12 | 扭转弹簧 右 | 1 | 41621842028 | $9.09 | Shop at ECS Tuning | |||||
| 用于车辆及 后部空气导流板 |
=是 |
|||||||||
| 12 | 扭转弹簧 右 | 1 | 41621927128 | $30.76 | 已经终止 | Shop at ECS Tuning | ||||
| 13 | 扭转弹簧 左 | 1 | 41621842027 | $9.09 | Shop at ECS Tuning | |||||
| 用于车辆及 后部空气导流板 |
=是 |
|||||||||
| 13 | 扭转弹簧 左 | 1 | 41621927127 | $31.76 | Shop at ECS Tuning | |||||
| 14 | 橡胶塞 | D=8MM | 2 | 41125503104 | $0.45 | 已经终止 | Shop at ECS Tuning | |||
| 15 | 加装套件 后部空气导流板 | 1 | 51711920208 | 已经终止 | Shop at ECS Tuning | |||||
| 16 | 后部空气导流板 | 1 | 51711917436 | $320.38 | 已经终止 | Shop at ECS Tuning | ||||
| 17 | 密封垫圈 | 7 | 51711916637 | $0.32 | Shop at ECS Tuning | |||||
| 18 | 固定螺帽 | M5 | 7 | 51185480150 | $0.32 | 已经终止 | Shop at ECS Tuning | |||
| 19 | 密封塞 | D=22MM | 2 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
