前围 零件 for BMW 7 Series G11 LCI 730i (2020)

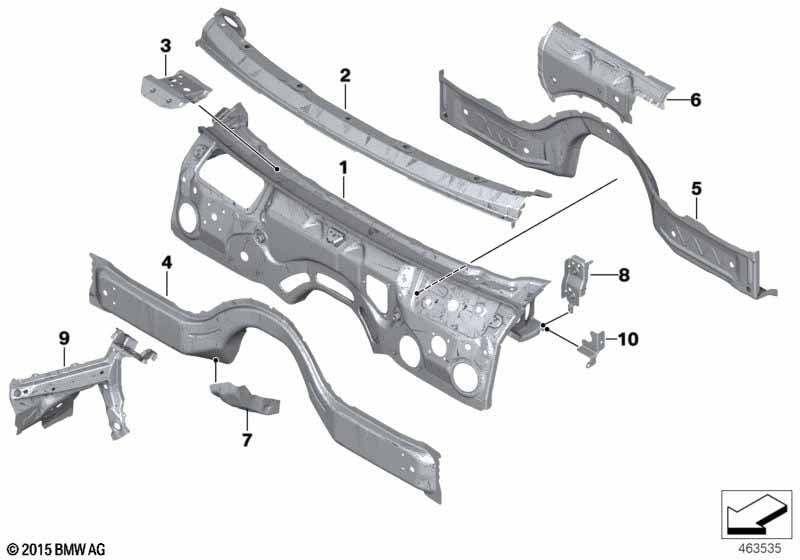

This 前围 零件 technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 前围 | 1 | 41007412967 | Shop at ECS Tuning | ||||||
| 02 | 横梁 前围 | 1 | 41007412968 | Shop at ECS Tuning | ||||||
| 03 | 定位件 前悬挂托架 左侧 | 1 | 41007412969 | Shop at ECS Tuning | ||||||
| 03 | 定位件 前悬挂托架 右侧 | 1 | 41007412970 | Shop at ECS Tuning | ||||||
| 04 | 支撑架 前围 | 1 | 41007412971 | Shop at ECS Tuning | ||||||
| 05 | 放大 前围 下部 | 1 | 41007412972 | NoS | Shop at ECS Tuning | |||||
| 07 | 添加件 托架 变速箱支架 左侧 | 1 | 41007412975 | NoS | Shop at ECS Tuning | |||||
| 07 | 添加件 托架 变速箱支架 右侧 | 1 | 41007412976 | Shop at ECS Tuning | ||||||
| 08 | 左侧支承管定位件 | 1 | 41007412977 | Shop at ECS Tuning | ||||||
| 08 | 右侧支承管定位件 | 1 | 41007412978 | Shop at ECS Tuning | ||||||
| 09 | 隔板 机组室 左 | 1 | 41007412947 | Shop at ECS Tuning | ||||||
| 09 | 隔板 机组室 右 | 1 | 41007412948 | Shop at ECS Tuning | ||||||
| 10 | 左侧支承管定位件的加强件 | 1 | 41007446673 | NoS | Shop at ECS Tuning | |||||
| 10 | 右侧支承管定位件的加强件 | 1 | 41007446674 | Shop at ECS Tuning |
备注
- NoS = No Stock (部件 未集中安置)
