玻璃 for BMW 2.5CS-3.0CSL 2.5CS (1975)

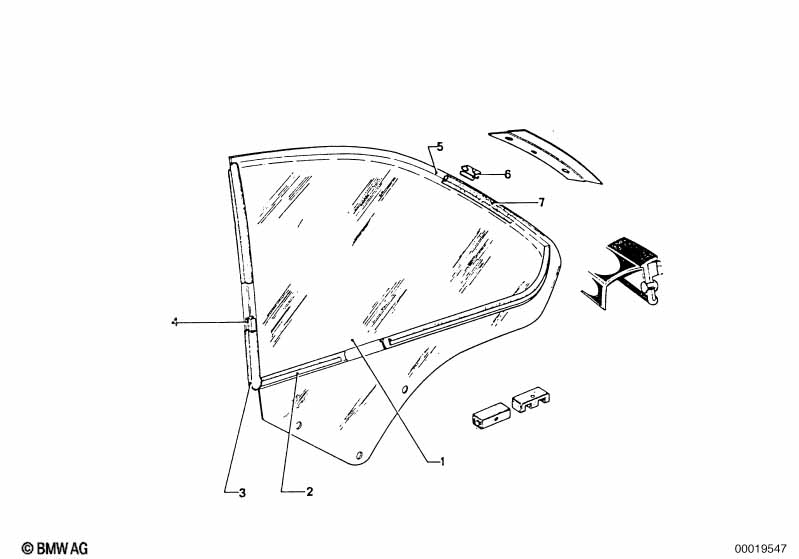

This 玻璃 technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 车窗玻璃 绿色 左 | 1 | 51371811137 | $128.29 | Shop at ECS Tuning | |||||
| 01 | 右车窗玻璃 Gr黱 | 1 | 51371811138 | $128.29 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 密封件 | 2 | 51367740104 | 已经终止 | Shop at ECS Tuning | |||||
| 03 | 密封件 左 | 1 | 51367740105 | $23.61 | Shop at ECS Tuning | |||||
| 03 | 密封件 右 | 1 | 51367740106 | $23.61 | Shop at ECS Tuning | |||||
| 04 | 左侧固定导轨 | 1 | 51377740138 | $23.70 | Shop at ECS Tuning | |||||
| 04 | 右侧固定导轨 | 1 | 51377740139 | $23.70 | Shop at ECS Tuning | |||||
| 05 | 导轨 | 1 | 51377740140 | 已经终止 | Shop at ECS Tuning | |||||
| 05 | 导轨 | 1 | 51377740141 | 已经终止 | Shop at ECS Tuning | |||||
| 06 | 夹子 | 12 | 51321817560 | $1.07 | 已经终止 | Shop at ECS Tuning | ||||
| 07 | 车窗导向条 前部 | X | 51326654262 | $68.24 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS 玻璃?
- This technical diagram illustrates the 玻璃 within the 车身装备 group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the 车窗玻璃 绿色 左 (Part #51371811137).
- Which models use the hardware listed in this 玻璃?
- The hardware and components featured in the 玻璃 are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the 车窗玻璃 绿色 左 (51371811137) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 玻璃 assembly?
- Each item in the 玻璃 corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the 车窗玻璃 绿色 左 by locating its position on the schematic, which then links to the official BMW part number 51371811137 for the 车身装备 section.
