标志 / 字符行 for BMW 5 Series E60 530i (2007)

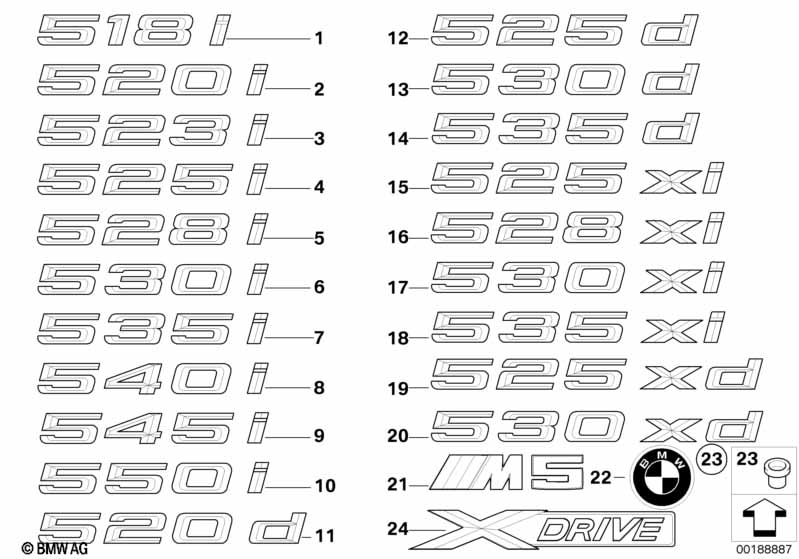

This 标志 / 字符行 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | 字符行 | - 530I - | 1 | 51147039786 | $33.62 | Shop at ECS Tuning | ||||
| 22 | 档位标识 | Ø 82MM | 2 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| 维修需要 | ||||||||||
| -- | 密封盖 | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 23 | 密封盖 | 4 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 530i 标志 / 字符行?
- This technical diagram illustrates the 标志 / 字符行 within the 车身装备 group for the 5 Series E60 530i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the 字符行 (Part #51147039786).
- Which models use the hardware listed in this 标志 / 字符行?
- The hardware and components featured in the 标志 / 字符行 are specific to the 5 Series E60 530i produced during 2007. These technical specifications ensure that parts like the 字符行 (51147039786) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 标志 / 字符行 assembly?
- Each item in the 标志 / 字符行 corresponds to the numbered list below the illustration. For the 5 Series E60 530i, you can identify the 字符行 by locating its position on the schematic, which then links to the official BMW part number 51147039786 for the 车身装备 section.
