M 挡板 车门槛 / 轮罩 for BMW 5 Series E60 530i (2007)

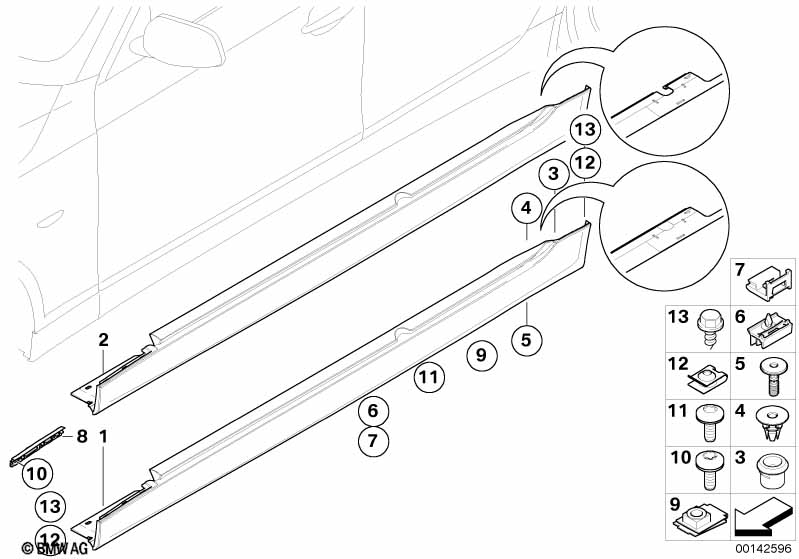

This M 挡板 车门槛 / 轮罩 technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用于车辆及 频谱车顶 电气 和 M Technic 空气动力套件 |
S402A=否 S715A=是 |
|||||||||
| 01 | 盖板 车门槛 已上底漆 左 | M | 1 | 51777907177 | $277.66 | +core | Shop at ECS Tuning | |||
| 01 | 盖板 车门槛 已上底漆 右 | M | 1 | 51777907178 | $277.66 | +core | Shop at ECS Tuning | |||
| 用于车辆及 频谱车顶 电气 和 M Technic 空气动力套件 订货时给出颜色码 |
S402A=否 S715A=是 |
|||||||||
| 01 | 盖板 车门槛 已上漆 左 | CODE - UNI/MET. | 1 | 51710396899 | 已经终止 | Shop at ECS Tuning | ||||
| 01 | 盖板 车门槛 已上漆 右 | CODE - UNI/MET. | 1 | 51710396900 | 已经终止, +core | Shop at ECS Tuning | ||||
| 03 | 套管 绿色 | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 04 | 间隔夹具 | X | 51717066226 | $0.61 | Shop at ECS Tuning | |||||
| 05 | 防松销 | X | 51717066229 | $0.35 | Shop at ECS Tuning | |||||
| 06 | 夹子 | X | 51717066223 | $1.11 | Shop at ECS Tuning | |||||
| 07 | 夹子 | 2 | 51717066220 | $1.11 | Shop at ECS Tuning | |||||
| 08 | 定位条 左 | 1 | 51717066227 | $12.23 | Shop at ECS Tuning | |||||
| 08 | 定位条 右 | 1 | 51717066228 | $12.23 | Shop at ECS Tuning | |||||
| 09 | C 形夹子 螺母 | M6 | 4 | 07142452506 | Shop at ECS Tuning | |||||
| 10 | 半圆头埋头螺钉 | 4 | 51247035802 | $0.73 | Shop at ECS Tuning | |||||
| 11 | 星形螺栓 | ISA M6X18 SW | 4 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 12 | 钢板螺母 | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 13 | 钢板螺母 | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
备注
- +core = plus core charge (possibility of a return of the old part)
- 已经终止 = 这个零件已经不再生产.
