饰件 后行李箱盖 for BMW 5 Series F10 LCI 520d (2013)

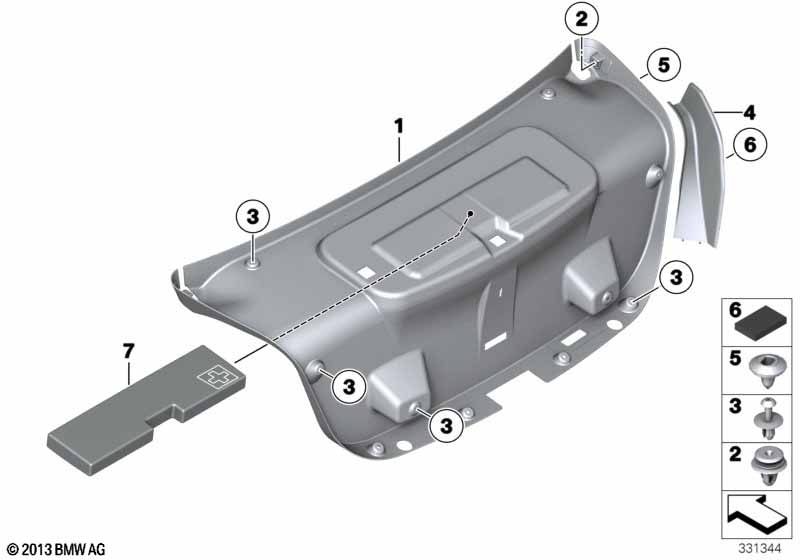

This 饰件 后行李箱盖 technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用于车辆及 后行李箱盖自动操作装置 或者 便捷上车功能 |
S316A=是 S322A=是 |
|||||||||
| 01 | 饰件 后行李箱盖 | 1 | 51497204373 | Shop at ECS Tuning | ||||||
| 用于车辆及 后行李箱盖自动操作装置 和 便捷上车功能 |
S316A=否 S322A=否 |
|||||||||
| 01 | 饰件 后行李箱盖 | 1 | 51497204372 | Shop at ECS Tuning | ||||||
| 02 | 夹子，天然色 | 2 | 51417046415 | $0.42 | Shop at ECS Tuning | |||||
| 03 | 膨胀铆钉 | 6 | 07149193301 | Shop at ECS Tuning | ||||||
| 04 | 挡板 排水槽 左侧 | 1 | 51497453355 | Shop at ECS Tuning | ||||||
| 04 | 挡板 排水槽 右侧 | 1 | 51497453356 | Shop at ECS Tuning | ||||||
| 05 | 夹子 下部部件 | 2 | 51717154239 | $0.79 | Shop at ECS Tuning | |||||
| 06 | 支架 | 2 | 51497278071 | Shop at ECS Tuning | ||||||
| 07 | 急救袋 | 1 | 51497276541 | Shop at ECS Tuning | ||||||
