M 饰板 装饰元件 前部 for BMW 5 Series G30 LCI 520d (2020)

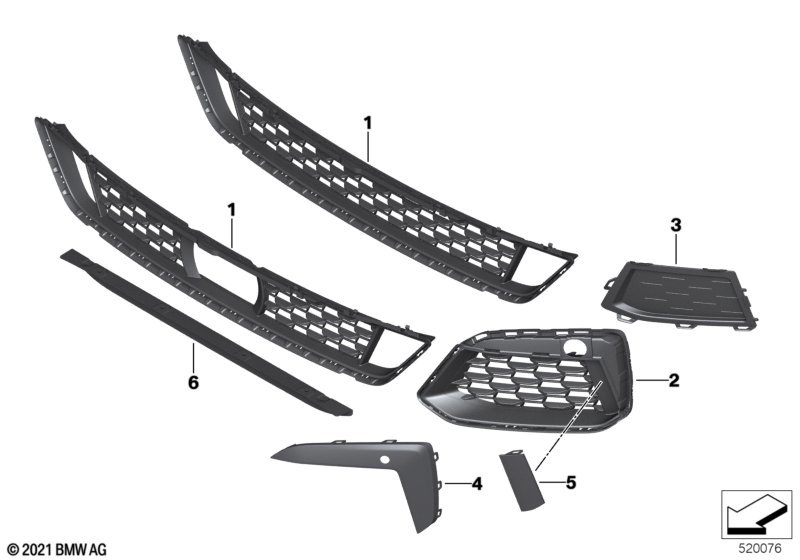

This M 饰板 装饰元件 前部 technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 用于车辆及 M Technic 空气动力套件 |
S715A=是 |
||||||||
| 用于车辆及 专业行车助手 和 自适应巡航控制系统+走走停停功能 |
S5AUA=否 S5DFA=否 |
|||||||||
| 01 | 格栅 中部 | M | 1 | 51118098663 | Shop at ECS Tuning | |||||
| 用于车辆及 专业行车助手 和 自适应巡航控制系统+走走停停功能 |
S5AUA=是 S5DFA=是 |
|||||||||
| 01 | 格栅 中部 | M FRR | 1 | 51118098664 | Shop at ECS Tuning | |||||
| 用于车辆及 专业行车助手 和 自适应巡航控制系统+走走停停功能 |
S5AUA=是 S5DFA=否 |
|||||||||
| 01 | 格栅 中部 | M FRR | 1 | 51118098664 | Shop at ECS Tuning | |||||
| 用于车辆及 专业行车助手 和 自适应巡航控制系统+走走停停功能 |
S5AUA=否 S5DFA=是 |
|||||||||
| 01 | 格栅 中部 | M FRR | 1 | 51118098664 | Shop at ECS Tuning | |||||
| 02 | 栅格 空气入口 打开 左侧 | M | 1 | 51118098669 | Shop at ECS Tuning | |||||
| 02 | 栅格 空气入口 打开 右侧 | M | 1 | 51118098670 | Shop at ECS Tuning | |||||
| 03 | 盖罩 格栅 左侧 | M | 1 | 51118098665 | Shop at ECS Tuning | |||||
| 03 | 盖罩 格栅 右侧 | M | 1 | 51118098666 | Shop at ECS Tuning | |||||
| 04 | 装饰板 左 | M PDC | 1 | 51119852171 | Shop at ECS Tuning | |||||
| 04 | 装饰板 右 | M PDC | 1 | 51119852172 | Shop at ECS Tuning | |||||
| 06 | 阻风唇 中部 前部 | 1 | 51758071012 | Shop at ECS Tuning | ||||||
