座椅 前部 座椅靠背骨架 for BMW 3 Series E36 325is (1990)

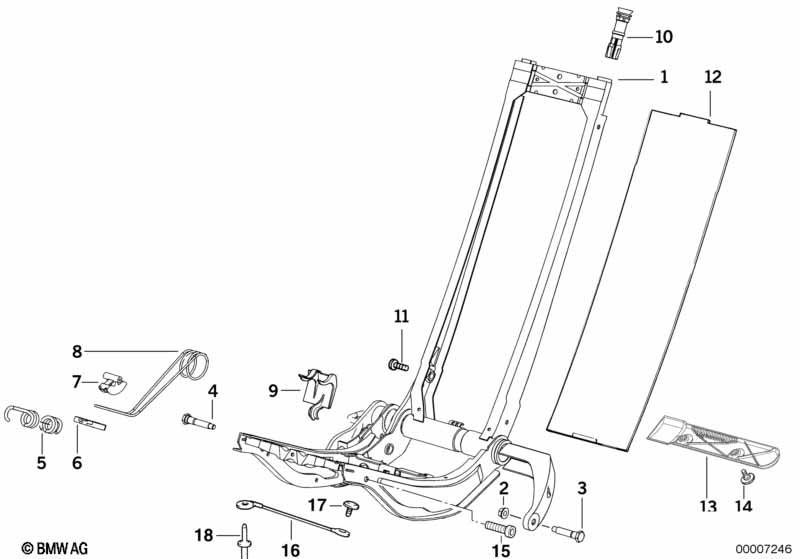

This 座椅 前部 座椅靠背骨架 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 框架 靠背 左 | 1 | 09/1994 | 52108130965 | $227.76 | 已经终止 | Shop at ECS Tuning | |||
| 01 | 框架 靠背 右 | 1 | 09/1994 | 52108130966 | $227.76 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 带肩螺母 自锁 | M8-8-ZNS3 | 4 | 09/1994 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 02 | 带肩螺母 自锁 | M8-10 ZNS3 | 4 | 09/1994 | 07119905374 | Shop at ECS Tuning | ||||
| 03 | 螺钉 | M8X49 | 2 | 09/1994 | 52108153031 | $2.29 | Shop at ECS Tuning | |||
| 04 | 螺钉 | M8X56 | 2 | 09/1994 | 52108227300 | $2.77 | 已经终止 | Shop at ECS Tuning | ||
| 05 | 拉簧 | 4 | 09/1994 | 52108153029 | $3.68 | 已经终止 | Shop at ECS Tuning | |||
| 06 | 支架 拉簧 | 2 | 09/1994 | 52108153028 | $2.09 | Shop at ECS Tuning | ||||
| 07 | 轴承座 | 2 | 09/1994 | 52108153027 | $1.62 | 已经终止 | Shop at ECS Tuning | |||
| 08 | 拉线 | 2 | 09/1994 | 52108153030 | $10.39 | Shop at ECS Tuning | ||||
| 10 | 导向套筒 | 2 | 09/1994 | 52208132020 | $1.80 | Shop at ECS Tuning | ||||
| 11 | 埋头螺钉 | M10X32 | 1 | 09/1994 | 52108119272 | $0.71 | 已经终止 | Shop at ECS Tuning | ||
| 12 | 外壳 | 2 | 09/1994 | 52108122296 | $7.59 | 已经终止 | Shop at ECS Tuning | |||
| 13 | 护鞋 左 | 2 | 09/1994 | 52108172847 | $6.45 | Shop at ECS Tuning | ||||
| 13 | 护鞋 右 | 2 | 09/1994 | 52108172848 | $6.45 | Shop at ECS Tuning | ||||
| 14 | 螺钉 | M6X15,4 | 4 | 09/1994 | 52108119276 | $0.58 | Shop at ECS Tuning | |||
| 16 | 拉线 | 2 | 01/1993 | 52108169012 | 已经终止 | Shop at ECS Tuning | ||||
| 17 | 螺钉 | M6X15,4 | 2 | 01/1993 | 52108119276 | $0.58 | Shop at ECS Tuning | |||
| 18 | 铆钉 | A6,4X12 | 1 | 01/1993 | 07119900403 | 已经终止 | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
