前部座椅 座椅导轨 电动/部件 for BMW 3 Series E36 323i (1996)

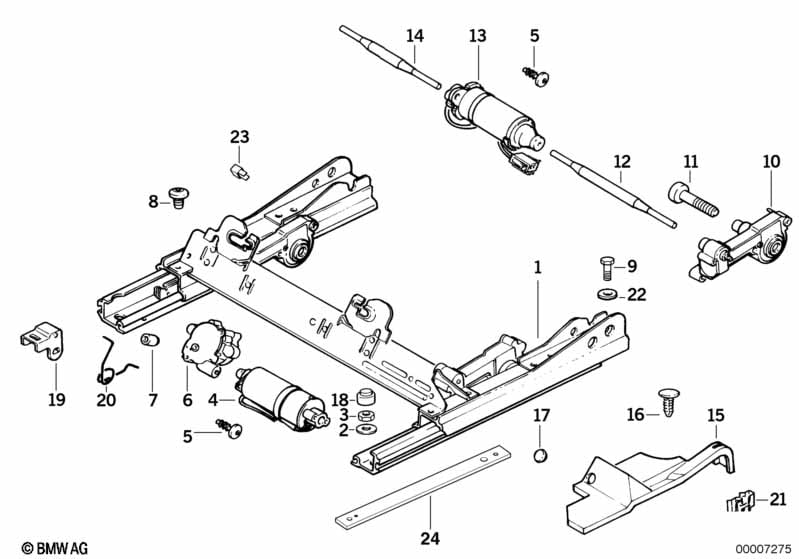

This 前部座椅 座椅导轨 电动/部件 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 座椅导轨 左 | 1 | 52108144065 | $641.97 | 已经终止 | Shop at ECS Tuning | ||||
| 01 | 座椅导轨 右 | 1 | 52108144066 | $641.97 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 弹簧垫片 | B10-ZNS3 | 4 | 08/2000 | 07119904463 | Shop at ECS Tuning | ||||
| 02 | 垫圈 | D=10MM | 4 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 03 | 六角螺母 凸缘啮合 | M10 | 4 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 04 | 伺服马达 倾斜度调整 | 2 | 67318357057 | $139.48 | Shop at ECS Tuning | |||||
| 05 | 半圆头埋头螺钉 | 8 | 52108151153 | $0.35 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | 变速装置 座椅倾斜度调整 | 2 | 52108157465 | $107.36 | 已经终止, +core | Shop at ECS Tuning | ||||
| 07 | 圆形螺母 | M8 | 4 | 52108151154 | $1.43 | 已经终止 | Shop at ECS Tuning | |||
| 08 | 半圆头埋头螺钉 | M6X8 | 8 | 52108151152 | $0.71 | 已经终止 | Shop at ECS Tuning | |||
| 09 | 六角螺栓 | M10 | 4 | 52108211438 | $0.71 | Shop at ECS Tuning | ||||
| 仅适用于 适配器座椅导轨加长件 |
||||||||||
| 09 | 六角螺栓 | M10X28 | 8 | 07119913836 | $0.63 | Shop at ECS Tuning | ||||
| 10 | 变速装置 纵向调整装置 左 | 1 | 52108157463 | $68.83 | +core | Shop at ECS Tuning | ||||
| 10 | 变速装置 纵向调整装置 右 | 1 | 52108157464 | $68.83 | +core | Shop at ECS Tuning | ||||
| 11 | 圆头螺钉 | M8X30 | 4 | 52108151151 | $1.32 | 已经终止 | Shop at ECS Tuning | |||
| 12 | 驱动轴 左 | 1 | 52108157467 | $7.71 | Shop at ECS Tuning | |||||
| 13 | 伺服马达 纵向调整装置 | 1 | 67318353225 | $128.77 | Shop at ECS Tuning | |||||
| 14 | 驱动轴 右 | 1 | 52108157466 | $7.95 | 已经终止 | Shop at ECS Tuning | ||||
| 15 | 饰盖 座椅导轨 外 左 | 1 | 52108119601 | $1.85 | 已经终止 | Shop at ECS Tuning | ||||
| 15 | 饰盖 座椅导轨 外 右 | 1 | 52108119602 | $1.85 | 已经终止 | Shop at ECS Tuning | ||||
| 16 | 夹子 | 2 | 52108151597 | $0.23 | Shop at ECS Tuning | |||||
| 17 | 膨胀铆钉 黑色 | L=15MM | 2 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 18 | 饰盖 | SCHWARZ | 4 | 52108169015 | $0.11 | Shop at ECS Tuning | ||||
| 19 | 挡块 | 2 | 52108156224 | $6.02 | 已经终止 | Shop at ECS Tuning | ||||
| 20 | 弹簧 座椅倾斜度调整 左 | 1 | 52108165727 | $7.59 | 已经终止 | Shop at ECS Tuning | ||||
| 20 | 弹簧 座椅倾斜度调整 右 | 1 | 52108165728 | $7.86 | 已经终止 | Shop at ECS Tuning | ||||
| 21 | 夹子 | SILBER | 2 | 52208132174 | $0.25 | Shop at ECS Tuning | ||||
| 22 | 平垫圈 | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 仅适用于高度调整 | ||||||||||
| 23 | 导向装置 | 2 | 52108171806 | $1.32 | Shop at ECS Tuning | |||||
| 24 | 适配器 座椅导轨延长部分 | 4 | 52108191181 | $18.50 | 已经终止, +core | Shop at ECS Tuning | ||||
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
