座椅 后部 座垫和座套 通入式装载系统 for BMW 3 Series E36 323i (1999)

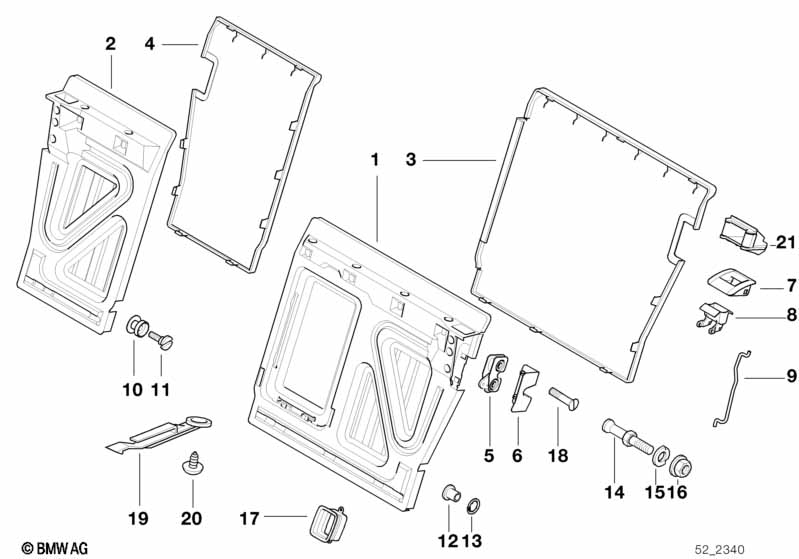

This 座椅 后部 座垫和座套 通入式装载系统 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 框架 靠背 左 | 1 | 52208173915 | +core | Shop at ECS Tuning | |||||
| 车型 带滑雪袋 |
||||||||||
| 01 | 框架 靠背 左 | 1 | 52208204629 | 已经终止 | Shop at ECS Tuning | |||||
| 02 | 框架 靠背 右 | 1 | 52208173916 | 已经终止 | Shop at ECS Tuning | |||||
| 车型 带滑雪袋 |
||||||||||
| 03 | 饰件 靠背 左 | SCHWARZ | 1 | 52208202259 | 已经终止, +core | Shop at ECS Tuning | ||||
| 03 | 饰件 靠背 左 | GRAU | 1 | 52208202261 | 已经终止, +core | Shop at ECS Tuning | ||||
| 03 | 饰件 靠背 左 | BEIGE | 1 | 52208202263 | 已经终止, +core | Shop at ECS Tuning | ||||
| 03 | 饰件 靠背 左 | KLASSISCHROT | 1 | 52208202265 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 饰件 靠背 左 | TUERKIS | 1 | 52208202267 | 已经终止, +core | Shop at ECS Tuning | ||||
| 03 | 饰件 靠背 左 | BLAUVIOLETT | 1 | 52208202269 | 已经终止, +core | Shop at ECS Tuning | ||||
| 03 | 饰件 靠背 左 | SAFRANGELB | 1 | 52208202271 | 已经终止 | Shop at ECS Tuning | ||||
| 04 | 饰件 靠背 右 | SCHWARZ | 1 | 52208192208 | 已经终止, +core | Shop at ECS Tuning | ||||
| 04 | 饰件 靠背 右 | GRAU | 1 | 52208192210 | 已经终止, +core | Shop at ECS Tuning | ||||
| 04 | 饰件 靠背 右 | BEIGE | 1 | 52208192212 | 已经终止 | Shop at ECS Tuning | ||||
| 04 | 饰件 靠背 右 | KLASS.ROT | 1 | 52208192214 | 已经终止, +core | Shop at ECS Tuning | ||||
| 04 | 饰件 靠背 右 | TUERKIS | 1 | 52208192216 | 已经终止, +core | Shop at ECS Tuning | ||||
| 04 | 饰件 靠背 右 | BLAUVIOLET | 1 | 52208192218 | 已经终止 | Shop at ECS Tuning | ||||
| 04 | 饰件 靠背 右 | SAFRANGELB | 1 | 52208192220 | 已经终止 | Shop at ECS Tuning | ||||
| 05 | 锁 左后 | 1 | 52208146355 | $22.11 | 已经终止 | Shop at ECS Tuning | ||||
| 05 | 锁 右后 | 1 | 52208146356 | $22.11 | 已经终止, +core | Shop at ECS Tuning | ||||
| 06 | 饰板 左 | SCHWARZ | 1 | 52208192241 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | 饰板 右 | SCHWARZ | 1 | 52208192242 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | 饰板 左 | DUNKELBEIGE | 1 | 52208192243 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | 饰板 右 | DUNKELBEIGE | 1 | 52208192244 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | 饰板 左 | DUNKELGRAU | 1 | 52208192245 | 已经终止 | Shop at ECS Tuning | ||||
| 06 | 饰板 右 | DUNKELGRAU | 1 | 52208192246 | 已经终止 | Shop at ECS Tuning | ||||
| 07 | 饰板 | SCHWARZ | 2 | 52208192766 | $2.75 | 已经终止 | Shop at ECS Tuning | |||
| 07 | 饰板 | BEIGE | 2 | 52208196407 | 已经终止 | Shop at ECS Tuning | ||||
| 07 | 饰板 | GRAU | 2 | 52208196408 | Shop at ECS Tuning | |||||
| 08 | 车门内抓手 | 2 | 52208196420 | 已经终止 | Shop at ECS Tuning | |||||
| 09 | 操纵杆 左 | 1 | 52208196421 | 已经终止 | Shop at ECS Tuning | |||||
| 09 | 操纵杆 右 | 1 | 52208196422 | 已经终止 | Shop at ECS Tuning | |||||
| 10 | 轴套 | 2 | 52208196418 | Shop at ECS Tuning | ||||||
| 11 | 承载轴销 中部 | M6 | 1 | 52208192606 | 已经终止 | Shop at ECS Tuning | ||||
| 11 | 承载轴销 | M10 | 2 | 52208196417 | 已经终止 | Shop at ECS Tuning | ||||
| 12 | 轴套 | 2 | 52208171104 | $0.28 | Shop at ECS Tuning | |||||
| 13 | 防松垫片 | 10-ZNS3 | 2 | 07119904911 | $0.27 | Shop at ECS Tuning | ||||
| 14 | 销 | 2 | 52208173760 | 已经终止 | Shop at ECS Tuning | |||||
| 15 | 平垫圈 | 2 | 51718184155 | Shop at ECS Tuning | ||||||
| 16 | 六角螺母 凸缘啮合 | M10 | 2 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 17 | 外壳 安全带锁扣 | 2 | 52208173777 | 已经终止 | Shop at ECS Tuning | |||||
| 18 | 埋头螺钉 | M8X40 | 4 | 52208196419 | 已经终止 | Shop at ECS Tuning | ||||
| 19 | 紧固端 | 1 | 72608120781 | $1.95 | Shop at ECS Tuning | |||||
| 20 | 塞子 黑色 | D=5MM | 1 | 52208133466 | $0.50 | Shop at ECS Tuning | ||||
| 21 | 夹子 | 2 | 52208202260 | 已经终止 | Shop at ECS Tuning | |||||
备注
- +core = plus core charge (possibility of a return of the old part)
- 已经终止 = 这个零件已经不再生产.
