BMW 跑车座椅 座椅导轨 for BMW 3 Series E30 M3 (1986)

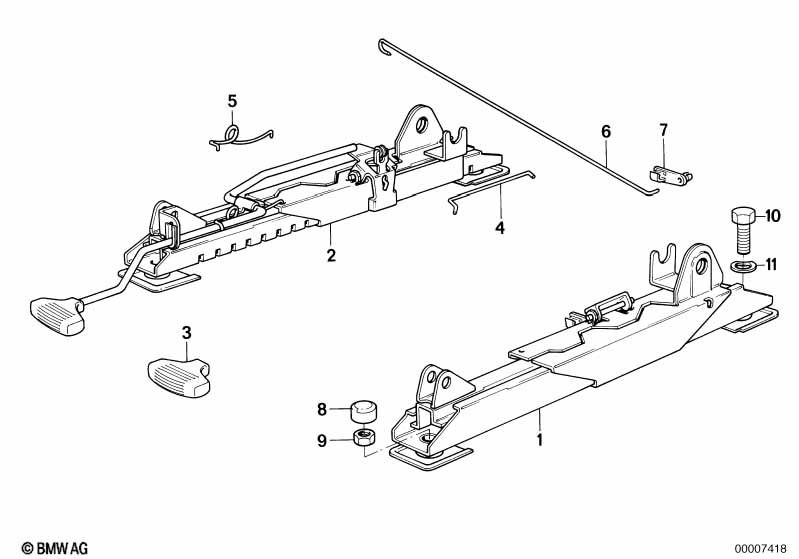

This BMW 跑车座椅 座椅导轨 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 车型 310 | |||||||||
| 01 | 座椅导轨 外部 左 | 1 | 09/1985 | 52101941979 | $36.59 | Shop at ECS Tuning | ||||
| 01 | 座椅导轨 外部 右 | 1 | 09/1985 | 52101941980 | $44.39 | Shop at ECS Tuning | ||||
| 02 | 座椅导轨 内部 左 | 1 | 09/1985 | 52101941977 | $45.88 | Shop at ECS Tuning | ||||
| 02 | 座椅导轨 内部 右 | 1 | 09/1985 | 52101941978 | $44.39 | Shop at ECS Tuning | ||||
| 03 | 握柄 | 2 | 09/1985 | 52101934417 | $2.41 | Shop at ECS Tuning | ||||
| 04 | 弹簧 | 4 | 09/1985 | 52101942251 | $0.77 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 弹簧 左 | 1 | 09/1985 | 52101942103 | $3.86 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 弹簧 右 | 1 | 09/1985 | 52101942104 | $3.86 | Shop at ECS Tuning | ||||
| 06 | 连接杆 座椅固定 | 2 | 09/1985 | 52101906587 | $1.86 | Shop at ECS Tuning | ||||
| 07 | 夹子 | 2 | 09/1985 | 52101903871 | $0.71 | Shop at ECS Tuning | ||||
| 08 | 饰盖 | 4 | 09/1985 | 52101941999 | $0.17 | 已经终止 | Shop at ECS Tuning | |||
| 09 | 六角螺母 | M10-8-ZNS | 4 | 09/1985 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 BMW 跑车座椅 座椅导轨?
- This technical diagram illustrates the BMW 跑车座椅 座椅导轨 within the 座椅 group for the 3 Series E30 M3 produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the 座椅导轨 外部 左 (Part #52101941979).
- Which models use the hardware listed in this BMW 跑车座椅 座椅导轨?
- The hardware and components featured in the BMW 跑车座椅 座椅导轨 are specific to the 3 Series E30 M3 produced during 1986. These technical specifications ensure that parts like the 座椅导轨 外部 左 (52101941979) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW 跑车座椅 座椅导轨 assembly?
- Each item in the BMW 跑车座椅 座椅导轨 corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the 座椅导轨 外部 左 by locating its position on the schematic, which then links to the official BMW part number 52101941979 for the 座椅 section.
