座椅 后部 座垫和座套 通入式装载系统 for BMW 3 Series E36 318is (1991)

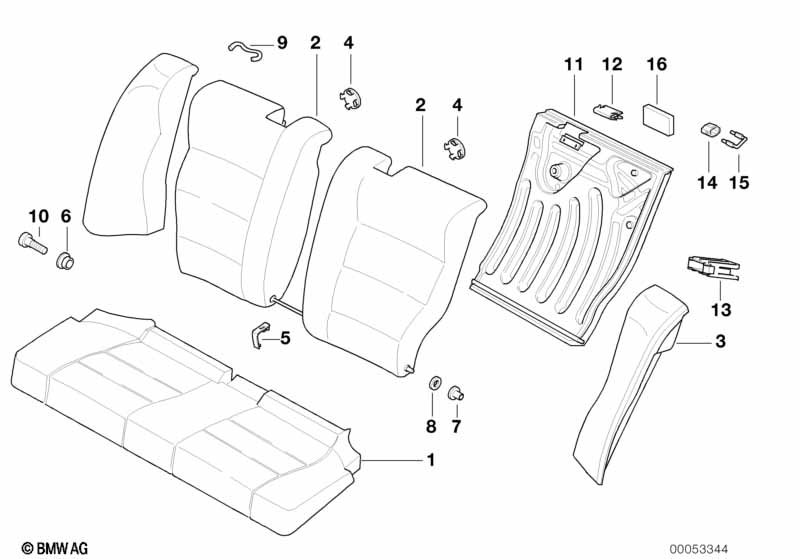

This 座椅 后部 座垫和座套 通入式装载系统 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 转换密码 内饰代码 旧的/新的 参见 EPC 中的 "缩写帮助信息" 参见 EPC |
|||||||||
| 01 | 后部座椅 | 1 | 52208130116 | $188.05 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 靠背 左后 | 1 | 52208130149 | $63.05 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 靠背 右后 | 1 | 52208130150 | $70.65 | 已经终止 | Shop at ECS Tuning | ||||
| 个性化车型 Avus | ||||||||||
| 03 | 侧部件 右 | ANTHRAZIT | 1 | 52209067880 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 侧部件 左 | ANTHRAZIT | 1 | 52209067883 | 已经终止, +core | Shop at ECS Tuning | ||||
| 用于车辆及 国家规格 澳大利亚 个性化车型 94 双门轿跑车 澳大利亚 |
L810A=是 |
|||||||||
| 03 | 侧部件 左 | D8AT,B4AT ANTHR | 1 | 52209063633 | $190.59 | 已经终止, +core | Shop at ECS Tuning | |||
| 03 | 侧部件 左 | D8TT,B4TT GRAU | 1 | 52209067687 | 已经终止, +core | Shop at ECS Tuning | ||||
| 03 | 侧部件 右 | D8TT,B4TT GRAU | 1 | 52209067694 | 已经终止, +core | Shop at ECS Tuning | ||||
| 用于车辆及 料子 暗条纹 |
A3=是 |
|||||||||
| 03 | 侧部件 左 | 0383 ANTHRAZIT | 1 | 09/1993 | 52209063453 | $181.91 | 已经终止, +core | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0384 SILBERGRAU | 1 | 09/1993 | 52209063455 | $181.91 | 已经终止, +core | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0385 ULTRAMARIN | 1 | 09/1993 | 52209063457 | $181.91 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0383 ANTHRAZIT | 1 | 09/1993 | 52209063458 | $181.91 | 已经终止, +core | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0386 PERGAMENT | 1 | 09/1993 | 52209063459 | $181.91 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0384 SILBERGRAU | 1 | 09/1993 | 52209063460 | $181.91 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0385 ULTRAMARIN | 1 | 09/1993 | 52209063462 | $181.91 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0386 PERGAMENT | 1 | 09/1993 | 52209063464 | $181.91 | 已经终止 | Shop at ECS Tuning | ||
| 用于车辆及 皮革 Bison |
L2=是 |
|||||||||
| 03 | 侧部件 左 | 0203 SCHWARZ | 1 | 09/1993 | 52209063467 | $399.53 | 已经终止, +core | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0394 SI.GR.HELL | 1 | 09/1993 | 52209063469 | $399.53 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0395 ULTRAMARIN | 1 | 09/1993 | 52209063471 | $399.53 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0203 SCHWARZ | 1 | 09/1993 | 52209063472 | $399.53 | 已经终止, +core | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0483 SILBERGRAU | 1 | 09/1993 | 52209063473 | $399.53 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0394 SI.GR.HELL | 1 | 09/1993 | 52209063474 | $399.53 | 已经终止, +core | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0396 PERGAMENT | 1 | 09/1993 | 52209063475 | $399.53 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0395 ULTRAMARIN | 1 | 09/1993 | 52209063476 | $399.53 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0483 SILBERGRAU | 1 | 09/1993 | 52209063478 | $399.53 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0396 PERGAMENT | 1 | 09/1993 | 52209063480 | $399.53 | 已经终止, +core | Shop at ECS Tuning | ||
| 用于车辆及 人造革 |
K1=是 |
|||||||||
| 03 | 侧部件 左 | 0478 ULTRAMARIN | 1 | 09/1993 | 52209063463 | $181.91 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0479 PERGAMENT | 1 | 09/1993 | 52209063465 | $190.59 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0478 ULTRAMARIN | 1 | 09/1993 | 52209063468 | $181.91 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 右 | 0479 PERGAMENT | 1 | 09/1993 | 52209063470 | $190.59 | 已经终止 | Shop at ECS Tuning | ||
| 03 | 侧部件 左 | 0477 SCHWARZ | 1 | 52209063461 | $181.91 | 已经终止, +core | Shop at ECS Tuning | |||
| 03 | 侧部件 右 | 0477 SCHWARZ | 1 | 52209063466 | $181.91 | 已经终止, +core | Shop at ECS Tuning | |||
| 04 | 盖板 | 2 | 52208153249 | $1.82 | Shop at ECS Tuning | |||||
| 05 | 盖板 | 1 | 52208153009 | $2.20 | Shop at ECS Tuning | |||||
| 06 | 轴承衬套 | 2 | 52208144415 | $1.23 | Shop at ECS Tuning | |||||
| 07 | 轴承衬套 | 2 | 52208144413 | $1.23 | Shop at ECS Tuning | |||||
| 08 | 间隔垫圈 | 2 | 52208144414 | $0.32 | Shop at ECS Tuning | |||||
| 09 | 夹子 | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 10 | 圆头螺钉 | ISA M8X17 | 2 | 52208144412 | $1.43 | Shop at ECS Tuning | ||||
| 11 | 饰件 靠背 左 | 1 | 52208130143 | $246.43 | +core | Shop at ECS Tuning | ||||
| 11 | 饰件 靠背 右 | 1 | 52208130144 | $246.43 | +core | Shop at ECS Tuning | ||||
| 12 | 夹子 | SILBER | X | 52208132174 | $0.25 | Shop at ECS Tuning | ||||
| 12 | 夹子 | GELB | X | 52208132176 | $0.18 | Shop at ECS Tuning | ||||
| 13 | 支架 侧部件 | SCHWARZ | 2 | 52208235661 | $4.68 | 已经终止 | Shop at ECS Tuning | |||
| 14 | 支架 | 2 | 52208119533 | $1.23 | 已经终止 | Shop at ECS Tuning | ||||
| 15 | 弹簧 | 2 | 52208119534 | $1.23 | Shop at ECS Tuning | |||||
| 16 | 橡胶缓冲器 | 4 | 51718203281 | $1.02 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
