座椅 后部 头枕 for BMW 4 Series G23 敞篷车 430i (2019)

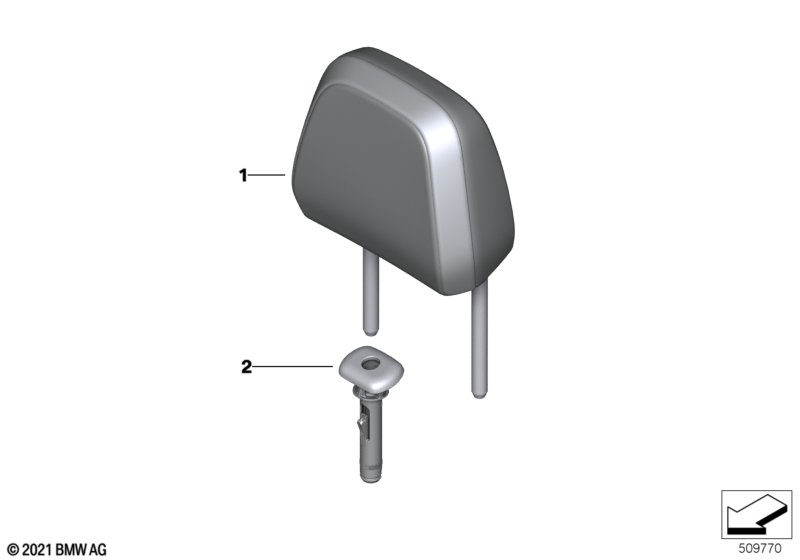

This 座椅 后部 头枕 technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 敞篷车 430i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用于车辆及 皮革 Vernasca/摩卡色装饰缝线 |
MAMU=是 |
|||||||||
| 01 | 头枕 皮革 | MOKKA | 2 | 01/2021 | 52209879671 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 真皮 Vernasca 黑色 接缝 灰色 |
MAH7=是 |
|||||||||
| 01 | 头枕 皮革 | SCHWARZ | 2 | 01/2021 | 52209879669 | Shop at ECS Tuning | ||||
| 用于车辆及 真皮 Vernasca cognac 接缝 灰色 |
MAPQ=是 |
|||||||||
| 01 | 头枕 皮革 | COGNAC | 2 | 01/2021 | 52209879673 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 Sensatec/schwarz |
KCSW=是 |
|||||||||
| 01 | 头枕 人造革 | SCHWARZ | 2 | 52209479120 | Shop at ECS Tuning | |||||
| 用于车辆及 真皮 Vernasca 黑色 接缝 蓝色 |
MANL=是 |
|||||||||
| 01 | 头枕 | ACHWARZ/BLAU | 2 | 52205A40B36 | NoS | Shop at ECS Tuning | ||||
| 用于车辆及 皮革 Vernasca/tacora 红色装饰缝线 |
MAG6=是 |
|||||||||
| 01 | 头枕 皮革 | TACORAROT | 2 | 01/2021 | 52209879668 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 皮革 vernasca / oyster 装饰缝线 |
MAOI=是 |
|||||||||
| 01 | 头枕 皮革 | OYSTER | 2 | 01/2021 | 52209879672 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 Individual 高级皮革/Fiona 红色/黑色 或者 Individual 粒面皮革 fiona-红色 /黑色 |
VAHZ=是 VBHZ=是 |
|||||||||
| 01 | 头枕 | SCHWARZ/ROT | 2 | 03/2021 | 52209503611 | Shop at ECS Tuning | ||||
| 用于车辆及 Sensatec/canberra米黄色 或者 Sensatec/canberra米黄色 |
KCCY=是 KCFY=是 |
|||||||||
| 01 | 头枕 人造革 | CANBERRABEIGE | 2 | 52209479119 | Shop at ECS Tuning | |||||
| 用于车辆及 皮革 Vernasca/canberra 米黄色装饰线缝 或者 皮革 Vernasca/canberra 米黄色装饰线缝 |
MAFO=是 MAFX=是 |
|||||||||
| 01 | 头枕 皮革 | CANBERRABEIGE | 2 | 01/2021 | 52209879667 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 皮革 Merino 象牙白 或者 Individual 粒面皮革 象牙白 |
VAEW=是 VBEW=是 |
|||||||||
| 01 | 头枕 | ELFENBEINWEISS | 2 | 03/2021 | 52209504063 | Shop at ECS Tuning | ||||
| 用于车辆及 皮革 Merino 松露色 或者 Individual 粒面皮革 松露色 |
VATQ=是 VBTQ=是 |
|||||||||
| 01 | 头枕 | TARTUFO | 2 | 03/2021 | 52209503610 | Shop at ECS Tuning | ||||
| 用于车辆及 皮革 vernasca / oyster 装饰缝线 |
MAOI=是 |
|||||||||
| 02 | 导向套筒 | OYSTER | 4 | 52207930666 | Shop at ECS Tuning | |||||
| 用于车辆及 Sensatec 多孔型/canberra 米色,扩充 或者 Sensatec 多孔型/canberra 米色,扩充 或者 Sensatec 多孔型/canberra 米色 |
KHFR=是 KHFS=是 KHFY=是 |
|||||||||
| 02 | 导向套筒 | CANBERRABEIGE | 4 | 52209479113 | Shop at ECS Tuning | |||||
| 用于车辆及 织物 sensatec./黑色 或者 Sensatec 多孔型/tacora 红色 或者 Sensatec 多孔型/cognac 高级 或者 Sensatec 多孔型/黑色 或者 皮革 Vernasca/tacora 红色装饰缝线 或者 皮革 Vernasca/摩卡色装饰缝线 或者 真皮 Vernasca 黑色 接缝 蓝色 或者 皮革 Merino 象牙白 或者 Individual 高级皮革/Fiona 红色/黑色 或者 皮革 Merino 松露色 或者 Individual 粒面皮革 象牙白 或者 Individual 粒面皮革 fiona-红色 /黑色 或者 Individual 粒面皮革 松露色 |
KFSW=是 KHG7=是 KHKC=是 KHSW=是 MAG6=是 MAMU=是 MANL=是 VAEW=是 VAHZ=是 VATQ=是 VBEW=是 VBHZ=是 VBTQ=是 |
|||||||||
| 02 | 导向套筒 | SCHWARZ | 4 | 52209479114 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
- NoS = No Stock (部件 未集中安置)
