座椅 前部 电气系统和驱动装置 for BMW 4 Series G23 敞篷车 420d (2019)

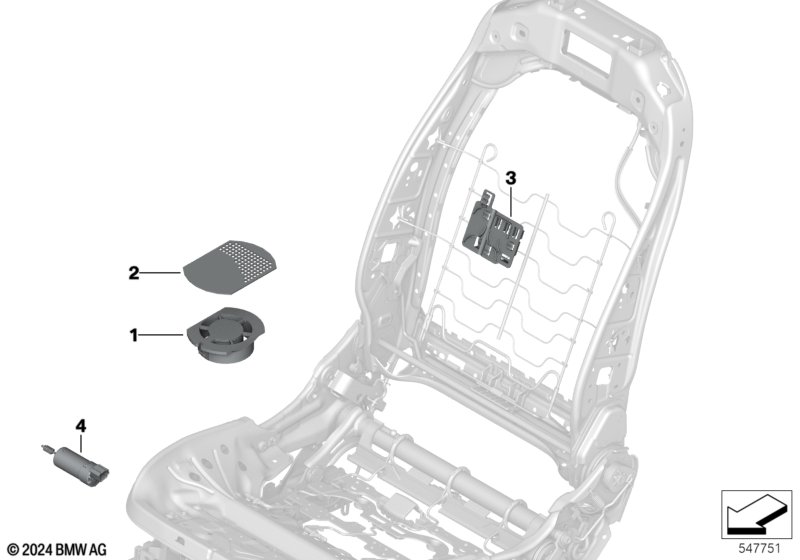

This 座椅 前部 电气系统和驱动装置 technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 敞篷车 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用于车辆及 配备主动式通风装置的座椅 靠背风扇 |
S4FHA=是 |
|||||||||
| 01 | 风扇 靠背 | KUNSTSTOFF | 8 | 52109490351 | Shop at ECS Tuning | |||||
| 用于车辆及 配备主动式通风装置的座椅 座椅 前部 |
S4FHA=是 |
|||||||||
| 01 | 风扇 座椅 | ALU KABEL KURZ | 8 | 52109490352 | Shop at ECS Tuning | |||||
| 用于车辆及 配备主动式通风装置的座椅 |
S4FHA=是 |
|||||||||
| 02 | 垫片 座椅 | 4 | 52107451507 | NoS | Shop at ECS Tuning | |||||
| 03 | 支架 插头连接 | 2 | 52107466223 | NoS | Shop at ECS Tuning | |||||
| 04 | 驱动装置 座椅纵向调整 左侧 | 1 | 52105A6D613 | NoS | Shop at ECS Tuning | |||||
| 04 | 驱动装置 座椅纵向调整 右侧 | 1 | 52105A6D614 | NoS | Shop at ECS Tuning | |||||
备注
- NoS = No Stock (部件 未集中安置)
