活动天窗-框架 for BMW 5 Series E39 525i (2003)

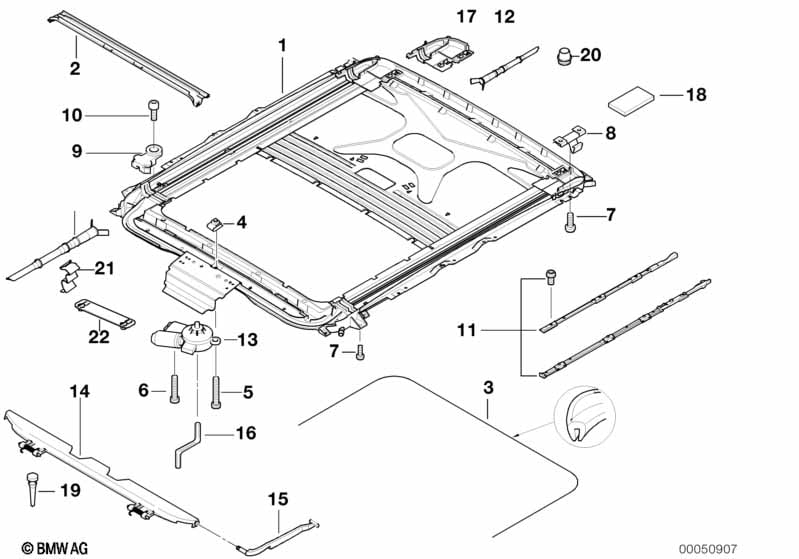

This 活动天窗-框架 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 用于车辆及 玻璃活动天窗 |
=是 |
|||||||||
| 01 | 框架 活动天窗 完整 | 1 | 03/1998 | 54128250048 | $909.15 | Shop at ECS Tuning | ||||
| 若有必要加上天窗框架； 驱动单元 活动天窗 |
||||||||||
| 用于车辆及 钢结构活动天窗 |
=是 |
|||||||||
| 01 | 框架 活动天窗 完整 | 1 | 03/1998 | 54128250049 | $909.15 | Shop at ECS Tuning | ||||
| 若有必要加上天窗框架； 驱动单元 活动天窗 |
||||||||||
| 02 | 导水条 | 1 | 54128203811 | $61.78 | Shop at ECS Tuning | |||||
| 03 | 密封件 框架 活动天窗 | L=2270MM | 1 | 54128185757 | $46.15 | Shop at ECS Tuning | ||||
| 04 | 螺母支架 | M5 | 1 | 51161849299 | $0.98 | Shop at ECS Tuning | ||||
| 05 | 星形螺栓 | ISA M5X32 | 1 | 54128116590 | $0.75 | Shop at ECS Tuning | ||||
| 06 | 半圆头埋头螺钉 | M5X28 | 2 | 54107209205 | $1.98 | Shop at ECS Tuning | ||||
| 07 | 星形螺栓 | ISA M5X12 | X | 54128163681 | $0.37 | Shop at ECS Tuning | ||||
| 08 | 夹子 | 2 | 54138120576 | $1.84 | Shop at ECS Tuning | |||||
| 09 | 夹圈 | 2 | 54128204659 | $3.33 | Shop at ECS Tuning | |||||
| 10 | 星形螺栓 | ISA M5X12 | 2 | 54128204926 | $0.81 | 已经终止 | Shop at ECS Tuning | |||
| 用于车辆及 玻璃活动天窗 |
=是 |
|||||||||
| 11 | 修理套件 天窗框架 机械机构 | 1 | 07/1996 | 54128231227 | $60.18 | Shop at ECS Tuning | ||||
| 用于车辆及 钢结构活动天窗 |
=是 |
|||||||||
| 11 | 修理套件 天窗框架 机械机构 | 1 | 07/1996 | 54128231228 | $60.18 | Shop at ECS Tuning | ||||
| 12 | 排水软管 | L=1460MM | 4 | 54128193171 | $5.40 | 已经终止 | Shop at ECS Tuning | |||
| 13 | 驱动单元 带模块的活动天窗 | 1 | 03/1998 | 67618377939 | $316.19 | Shop at ECS Tuning | ||||
| 14 | 风力转向器 | 1 | 54128203806 | $124.25 | Shop at ECS Tuning | |||||
| 16 | 紧急操作装置 电动车窗/活动天窗 | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 17 | 角形板 左 | 1 | 54128185201 | $8.43 | Shop at ECS Tuning | |||||
| 17 | 角形板 右 | 1 | 54128185202 | $8.43 | Shop at ECS Tuning | |||||
| 18 | 组件 毛毡条 自粘式 | X | 51452353024 | Shop at ECS Tuning | ||||||
| 19 | 橡胶缓冲器 | 2 | 54121926664 | $0.49 | Shop at ECS Tuning | |||||
| 21 | 导线支架 | 8 | 54128193188 | $0.32 | Shop at ECS Tuning | |||||
| 22 | 支架 传感器 | 1 | 54128220743 | $9.73 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
