蓄电池 for BMW 5 Series E28 524td (1987)

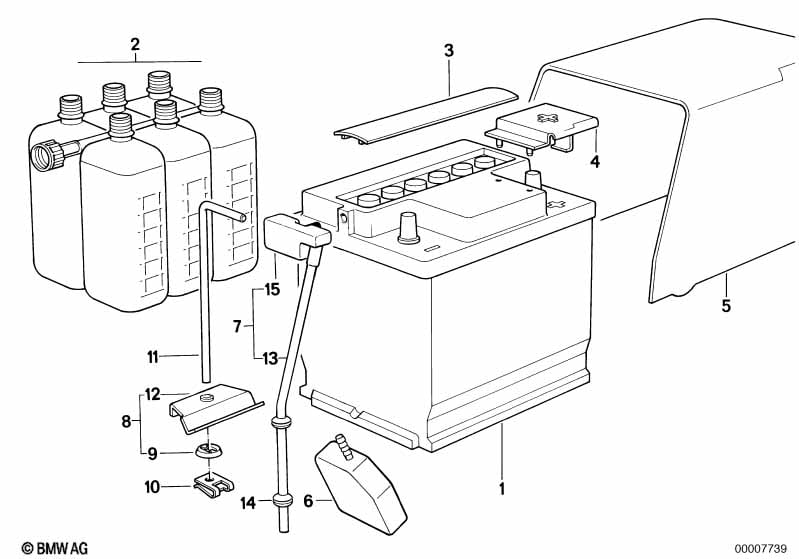

This 蓄电池 technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 原装 BMW 蓄电池 充足电 | 83AH | 1 | 61212432653 | Shop at ECS Tuning | |||||
| 01 | 蓄电池 能源组 | 85AH VARTA | 1 | 61219061641 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 蓄电池酸液组 (6 瓶) | 70/75/80/85AH | 1 | 61219058697 | 已经终止 | Shop at ECS Tuning | ||||
| 用于车辆及 国家规格 瑞士 |
L804A=是 |
|||||||||
| 02 | 蓄电池酸液组 (6 瓶) | 2000ML | 1 | 61219059010 | 已经终止 | Shop at ECS Tuning | ||||
| 03 | 盖板 | 90AH | 1 | 61211373810 | 已经终止 | Shop at ECS Tuning | ||||
| 04 | 盖板 蓄电池 正极 | 1 | 61211385139 | $5.92 | 已经终止 | Shop at ECS Tuning | ||||
| 用于车辆及 官方规格 |
=是 |
|||||||||
| 05 | 盖板 | 1 | 61211370529 | 已经终止 | Shop at ECS Tuning | |||||
| 仅适用于 辅助电池 |
||||||||||
| 07 | 储液罐 | 1 | 03/1985 | 61211386140 | 已经终止 | Shop at ECS Tuning | ||||
| 仅适用于 辅助电池 |
||||||||||
| 08 | 蓄电池支架 | 1 | 61211372478 | $3.62 | Shop at ECS Tuning | |||||
| 用于车辆及 官方规格 |
=是 |
|||||||||
| 08 | 蓄电池支架 | 232MM | 1 | 61211353680 | $8.52 | Shop at ECS Tuning | ||||
| 仅适用于 辅助电池 |
||||||||||
| 09 | 轴向防松 | 15X5,7MM | 1 | 07149158226 | Shop at ECS Tuning | |||||
| 10 | C 形夹子 螺母 | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 用于车辆及 官方规格 |
=是 |
|||||||||
| 13 | 软管 按米出售 | X | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 仅适用于 辅助电池 |
||||||||||
| 14 | 密封盖 | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 仅适用于 辅助电池 |
||||||||||
| 15 | 储液罐 | 1 | 61211376693 | $3.38 | Shop at ECS Tuning | |||||
| 仅适用于 辅助电池 |
||||||||||
备注
- 已经终止 = 这个零件已经不再生产.
