喇叭 for BMW 3 Series E30 318i (1994)

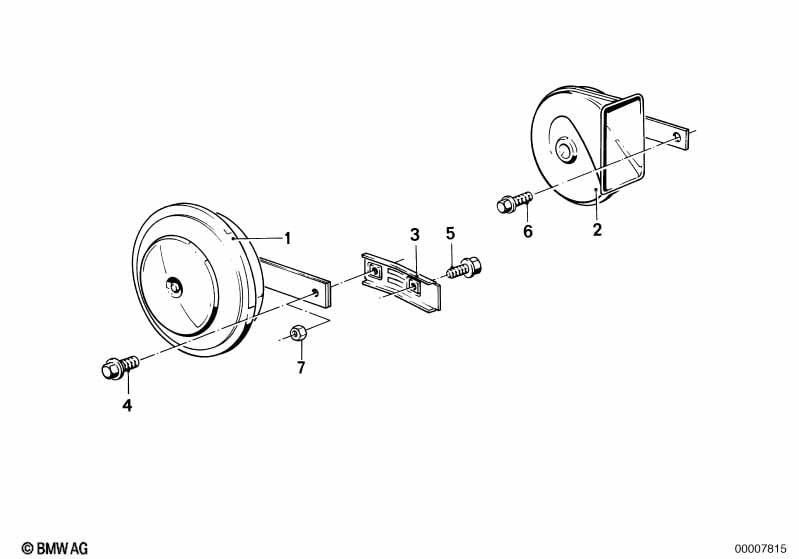

This 喇叭 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 喇叭 | BOSCH 335HZ | 1 | 61331367312 | $54.69 | Shop at ECS Tuning | ||||
| 01 | 喇叭 | KLAXON 335HZ | 1 | 61331367358 | $42.14 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 喇叭 | FIAMM 510HZ | 1 | 08/2004 | 61331386254 | $26.08 | Shop at ECS Tuning | |||
| 02 | 喇叭 | FIAMM 510HZ | 1 | 61337163992 | $26.08 | 已经终止, +core | Shop at ECS Tuning | |||
| 02 | 喇叭 | HELLA 500HZ | 1 | 61331374439 | $54.32 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 喇叭 | HELLA 400HZ | 1 | 61331374440 | $54.32 | Shop at ECS Tuning | ||||
| 02 | 喇叭 | HELLA 500HZ | 1 | 61331386252 | $54.69 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 喇叭 | HELLA 400HZ | 1 | 61331386253 | $54.69 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 喇叭 | KLAXON 520HZ | 1 | 61331388903 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 喇叭 | FIAMM 410HZ | 1 | 61337163991 | $42.94 | 已经终止, +core | Shop at ECS Tuning |
备注
- 已经终止 = 这个零件已经不再生产.
- +core = plus core charge (possibility of a return of the old part)
