零件 刮水器 for BMW 5 Series E39 525i (2003)

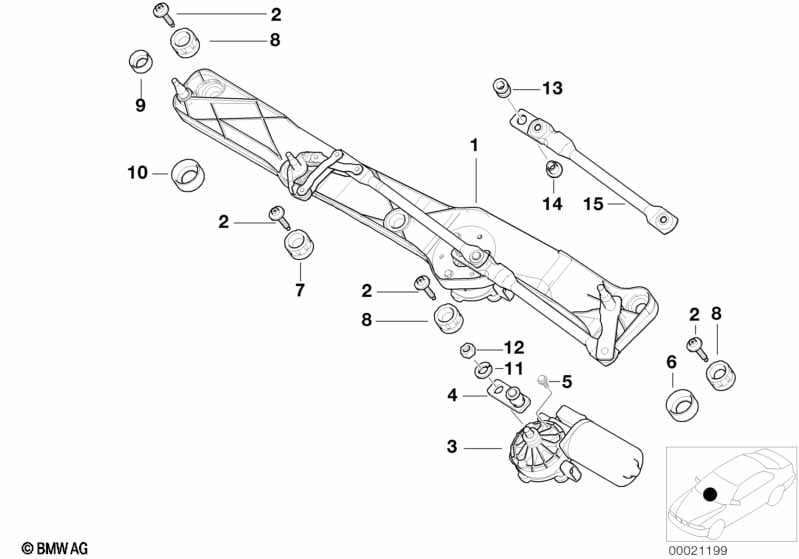

This 零件 刮水器 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 托架 刮水器 | 1 | 61618385218 | $282.12 | Shop at ECS Tuning | |||||
| 02 | 半圆头埋头螺钉 | 5 | 07146988521 | $0.68 | Shop at ECS Tuning | |||||
| 03 | 刮水器马达 | 1 | 67638360603 | $322.18 | Shop at ECS Tuning | |||||
| 仅连接 | ||||||||||
| -- | 自攻螺栓 | M6X16MM | 1 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| -- | 弹簧垫片 | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| -- | 六角螺母 | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 04 | 发动机曲轴 | 1 | 61618361739 | $23.37 | Shop at ECS Tuning | |||||
| 06 | 轴承衬套 深孔 | 1 | 61618166973 | $7.03 | Shop at ECS Tuning | |||||
| 07 | 轴承衬套 圆孔 | D=6.4 | 1 | 61618165595 | $7.03 | Shop at ECS Tuning | ||||
| 08 | 轴承衬套 圆孔 | D=12 | 3 | 61618165596 | $7.03 | 已经终止 | Shop at ECS Tuning | |||
| 09 | 缓冲环 上部分 | 5 | 61618166974 | $3.35 | Shop at ECS Tuning | |||||
| 10 | 缓冲环 下部分 | 5 | 61618166975 | $3.35 | Shop at ECS Tuning | |||||
| 11 | 弹簧垫片 | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | 六角螺母 | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 13 | 缓冲环 | 1 | 61611372676 | $5.48 | Shop at ECS Tuning | |||||
| 14 | 轴套 | 1 | 61611374870 | $7.23 | 已经终止 | Shop at ECS Tuning | ||||
| 15 | 驱动杆 | 1 | 61618361741 | $12.20 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i 零件 刮水器?
- This technical diagram illustrates the 零件 刮水器 within the 一般车辆电气系统 group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the 托架 刮水器 (Part #61618385218).
- Which models use the hardware listed in this 零件 刮水器?
- The hardware and components featured in the 零件 刮水器 are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the 托架 刮水器 (61618385218) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 零件 刮水器 assembly?
- Each item in the 零件 刮水器 corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the 托架 刮水器 by locating its position on the schematic, which then links to the official BMW part number 61618385218 for the 一般车辆电气系统 section.
