壳体零件 供暖装置/微尘滤清器 for BMW 3 Series E30 M3 (1986)

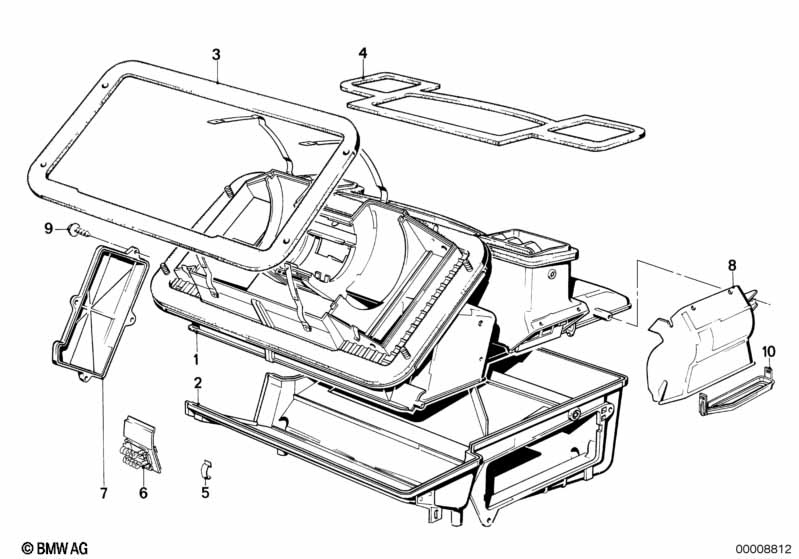

This 壳体零件 供暖装置/微尘滤清器 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 仅适用于 加热器 (进油管路 铝) |
|||||||||
| 用于车辆及 国家规格 加拿大 |
L838A=是 |
|||||||||
| 01 | 壳体上部分 | 1 | 64111370614 | $272.30 | 已经终止 | Shop at ECS Tuning | ||||
| 02 | 壳体下部分 | 1 | 64311394094 | 已经终止 | Shop at ECS Tuning | |||||
| 03 | 密封件 | 1 | 64111370936 | $28.91 | Shop at ECS Tuning | |||||
| 04 | 密封件 | 1 | 64111370937 | $31.16 | Shop at ECS Tuning | |||||
| 05 | 夹子 | X | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
| 用于车辆及 国家规格 加拿大 |
L838A=是 |
|||||||||
| 06 | 电阻 | 1 | 64111370927 | $49.29 | Shop at ECS Tuning | |||||
| 07 | 盖罩 | 1 | 64111370929 | $86.30 | Shop at ECS Tuning | |||||
| 08 | Air channel right | 1 | 64211466232 | $4.32 | Shop at ECS Tuning | |||||
| 用于车辆及 国家规格 加拿大 |
L838A=是 |
|||||||||
| 08 | 空气道 左 | 1 | 64211370619 | $13.43 | 已经终止 | Shop at ECS Tuning | ||||
| 08 | 空气道 右 | 1 | 64211370620 | $9.17 | 已经终止 | Shop at ECS Tuning | ||||
| 09 | 螺钉 | X | 64111370949 | $0.38 | Shop at ECS Tuning | |||||
| 10 | 密封盖 | 2 | 64111372670 | $0.80 | Shop at ECS Tuning | |||||
备注
- 已经终止 = 这个零件已经不再生产.
