电子部件 加热器 for BMW 5 Series E39 523i (1995)

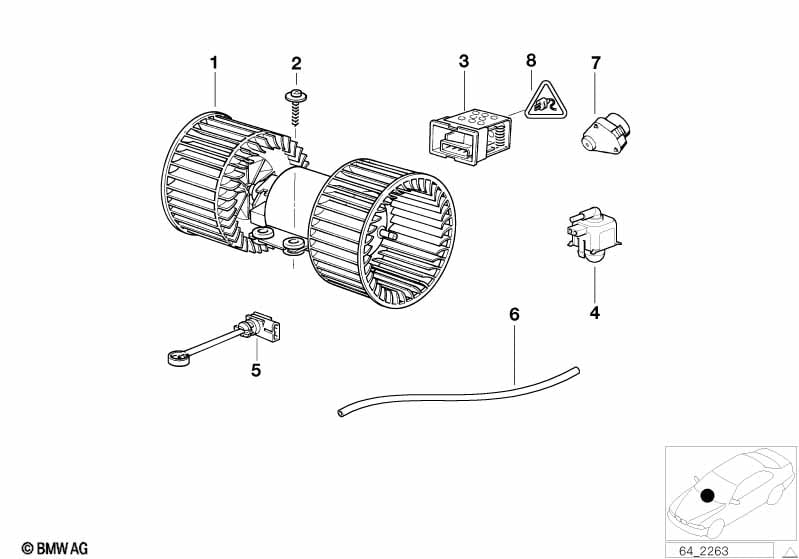

This 电子部件 加热器 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| 号码 | 详解 | 提供 | 数量 | 从 | 到 | 零件号码 | 价格 | 备注 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 风扇 | 1 | 09/1998 | 64118372183 | $320.03 | 已经终止 | Shop at ECS Tuning | |||
| 02 | 螺钉 | 3 | 09/1998 | 64118391922 | $1.28 | Shop at ECS Tuning | ||||
| 03 | 输出级 风扇 | 1 | 09/1998 | 64116923204 | $117.73 | Shop at ECS Tuning | ||||
| 04 | 车内温度传感器 | 2 | 09/1998 | 64111384253 | $33.45 | 已经终止 | Shop at ECS Tuning | |||
| 05 | 加热器温度传感器 | 2 | 09/1998 | 64118391392 | $33.45 | Shop at ECS Tuning | ||||
| 06 | 真空软管 Schwarz | 3,5X1,8 | 2 | 09/1998 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 07 | 伺服马达 新鲜空气风门 | 1 | 09/1998 | 64116902695 | $96.83 | Shop at ECS Tuning | ||||
| 08 | 套筒壳体 | 5 POL. | 1 | 09/1998 | 61138377762 | $1.52 | 已经终止 | Shop at ECS Tuning | ||
| 仅连接 | ||||||||||
| -- | 圆形插套 2.5 | 2,5-4,0MM² | 5 | 09/1998 | 61131376206 | $0.98 | Shop at ECS Tuning | |||
备注
- 已经终止 = 这个零件已经不再生产.
